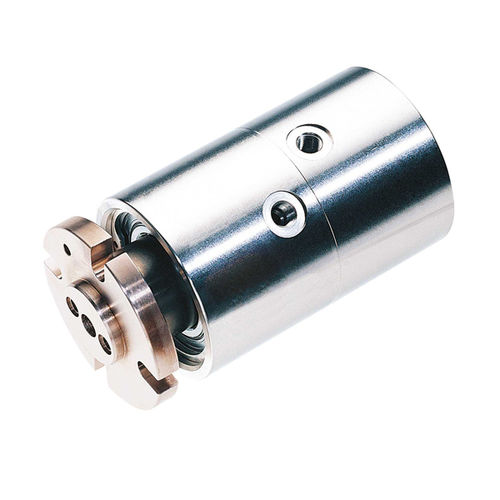

Air rotary union MCRVR series
for oilfor vacuummulti-passage

air rotary union
air rotary union
air rotary union
air rotary union
air rotary union
Add to favorites
Compare this product


for air, for oil, for vacuum
Number of passages
hydraulic, low-pressure, pneumatic, for pipes
stainless steel, carbon steel
Other characteristics
radial, screw-in, with seal, ball bearing, flange, high-speed, compact

Min.: 0 bar (0 psi)

Max.: 10 bar (145 psi)

Rotational speed

Min.: 0 rpm (0 rad.min-1)

Max.: 5,000 rpm (31,416 rad.min-1)

Nominal size

Min.: 0.125 in

Max.: 0.3 in


These multi-circuit rotary connections allow the transfer of several fluids at different pressures on your installation. Activities: – Chemistry, Plastic, Health – Metallurgy, Mechanics and Subcontracting Technical Data: Number of ports: 2 ways, 3 ways and more Fluid: Water, Oil Rotation Speed: Articulation (up to 5 RPM), Low speed (from 5 to 20 RPM), Intermediate speed (from 20 to 1500 RPM), High Speed (from 1500 to 5000 RPM) Pressure working: Very Low (from -0,6 bar to 0 bar), Low (from 0 to 10 bars) Size: from 1/8″ to 1/4″, from 1/4″ to 3/8″ Material: Stainless Steel Surface treatment: Chemical Nickel, Ceramic, Anodizing, Kolsterisation Implantation: Angle elbow Temperature working: Up to 120°C Connection: Thread BSP *for any other type of connection, please contact us.
