Water rotary union 1600B
for oilfor airfor vacuum

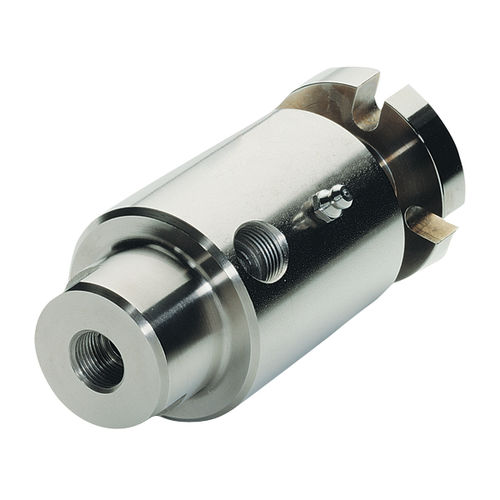

Water rotary union - 1600B - Duff-Norton Europe - for oil / for air / for vacuum
Water rotary union - 1600B - Duff-Norton Europe - for oil / for air / for vacuum
Water rotary union - 1600B - Duff-Norton Europe - for oil / for air / for vacuum - image - 2
Water rotary union - 1600B - Duff-Norton Europe - for oil / for air / for vacuum - image - 3
Water rotary union - 1600B - Duff-Norton Europe - for oil / for air / for vacuum - image - 4
Add to favorites
Compare this product

Characteristics

Medium
for water, for oil, for air, for vacuum, for gas, for chemicals, for food industry applications
Number of passages
2-passage
Applications
for transfer, hydraulic, pneumatic, low-pressure, for pipes, for rollers, medium-pressure, for the steel industry, for the paper industry, for the chemical industry, for rubber and plastic applications, for construction vehicles, for the plastics industry
Material
stainless steel, carbon steel
Other characteristics
radial, with seal, screw-in, flange, ball bearing, high-speed, low-speed, small
Rotational speed

Max.: 1,500 rpm
(9,424.78 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Pressure

Max.: 100 bar
(1,450 psi)

Min.: 0 bar
(0 psi)

Nominal size

Max.: 1 mm
(0.039 in)

Min.: 0.25 mm
(0.01 in)

Description

Supply of rotating shafts with 1 or 2 fluids, double effect jack command, etc. Technical Data: Material: Steel, Stainless Steel Surface treatment: Chemical Nickel, Ceramic Implantation: Angle elbow Temperature working: Up to 120°C Connection: Thread BSP, NPT *for any other type of connection, please contact us.
