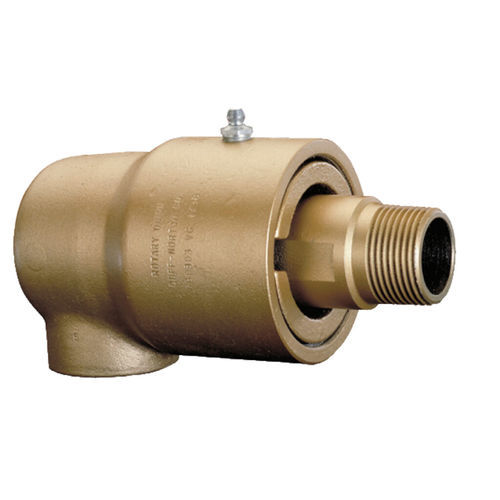

Water rotary union 9000 series
for airfor oilfor steam

water rotary union
water rotary union
water rotary union
water rotary union
water rotary union
water rotary union
water rotary union
Add to favorites
Compare this product


Characteristics

Medium
for water, for air, for oil, for steam
Number of passages
2-passage
Applications
hydraulic, low-pressure, for pipes
Material
cast iron, steel
Other characteristics
radial, screw-in, ball bearing, flange, right-angle, large
Pressure

Min.: 0 bar (0 psi)

Max.: 100 bar (1,450 psi)

Rotational speed

Min.: 0 rpm (0 rad.min-1)

Max.: 1,500 rpm (9,425 rad.min-1)

Nominal size

Min.: 1 in

Max.: 5 in

Description

Equipped with a bellows seal, these rotary connectors ensure the transfer of your fluids while ensuring a great flexibility of assembly. Activities: – Food – Chemistry, Plastic, Health – Metallurgy, Mechanics and Subcontracting – Trading – Paper, Printing, Publishing – Mineral products Technical Data: Number of ports: 1 way, 2 ways Fluid: Air, Oil, Steam Rotation Speed: Articulation (up to 5 RPM), Low speed (from 5 to 20 RPM), Intermediate speed (from 20 to 1500 RPM) Pressure working: Low (from 0 to 10 bars), Intermediate (from 0 to 100 bars) Size: from 1″ to 1″ 1/4, from 1″ 1/4 to 1″ 1/2, from 1″ 1/2 to 2″, from 2″ to 3″, from 3″ to 4″, from 4″ to 5″ Material: Steel Surface treatment: Not available Implantation: Angle elbow Temperature working: -20°C à 200°C Connection: Thread BSP, NPT *for any other type of connection, please contact us.
