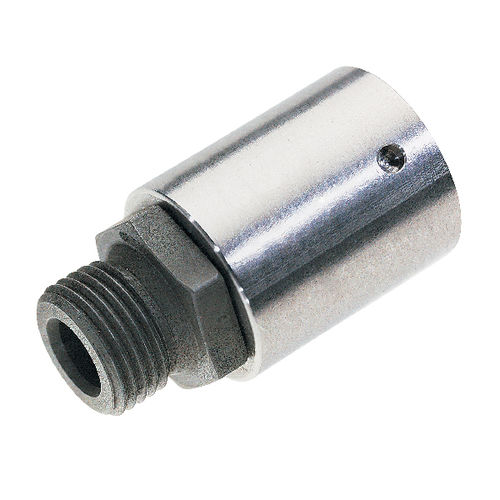

Water rotary union 1000 series
for airfor oilfor steam

water rotary union
water rotary union
water rotary union
water rotary union
water rotary union
Add to favorites
Compare this product


Characteristics

Medium
for water, for air, for oil, for steam, for vacuum, for chemicals
Applications
low-pressure, for transfer, for pipes, for rollers
Material
stainless steel, carbon steel
Other characteristics
screw-in, with seal, right-angle, low-speed, orientable, large
Pressure

Min.: 0 bar (0 psi)

Max.: 100 bar (1,450 psi)

Rotational speed

Min.: 0 rpm (0 rad.min-1)

Max.: 5 rpm (31 rad.min-1)

Nominal size

Min.: 0.25 in

Max.: 3 in

Description

Description: With their simple design, these connections allow you to carry your fluids up to 100 bar pressures while ensuring either an oscillating movement or a continuous rotation of a few rpm. Activities: – Food – Construction, Building, Wood, Habitat – Energy, Environment – Metallurgy, Mechanics and Subcontracting – Trading – Paper, Printing, Publishing – Transport and Logistics Technical Data: Number of ports: 1 way Fluid: Air, Water, Oil Rotation Speed: Articulation (up to 5 RPM) Pressure working: Very Low (from -0,6 bar to 0 bar), Low (from 0 to 10 bars), Intermediate (from 0 to 100 bars) Size: from 1/4″ to 3/8″, from 3/8″ to 1/2″, from 1/2″ to 1″, from 1″ to 1″ 1/4, from 1″ 1/4 to 1″ 1/2, from 1″ 1/2 to 2″, from 2″ to 3″ Material: Steel Surface treatment: Chemical Nickel Implantation: Straight, Angle elbow Temperature working: -20°C à 200°C Connection: Thread BSP, NPT *for any other type of connection, please contact us.
