Underground cable joint ECOLD GLM 66armoredfor transition connectionsfor paper-insulated cables
Add to favorites
Compare this product
Characteristics
- Mounting
- underground
- Protection level
- armored
- Applications
- for polymer-insulated cables, for paper-insulated cables, for transition connections
- Other characteristics
- heat-shrinkable, PILC to XLPE
Description
Short description

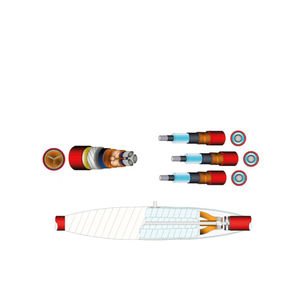

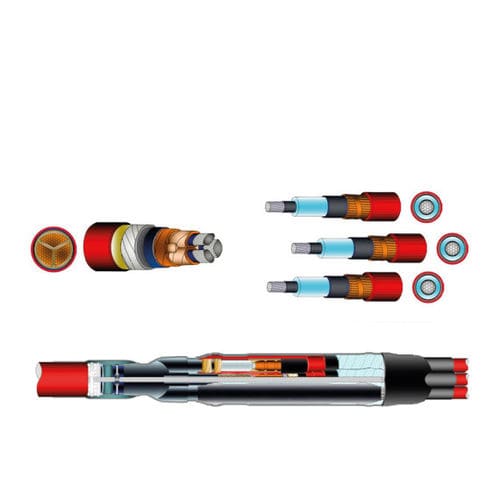

Transition joint for 3‑core PILC BELTED (non‑radial field) cable to three 1‑core polymeric insulated cables. Hybrid solution composed of a cold‑shrink semiconducting breakout and a triple‑wall (stress control – insulating – semiconducting) cold‑shrink body supplied assembled on a removable support. Outer protection is provided by an adhesive‑lined heat‑shrink tube and breakout; hot‑melt adhesive ensures sealing. Designed for underground applications.
Design and components
Standards / Compliance
Compliant with CENELEC HD 629.2 S2 and CEI 20‑62/2.
Technical specifications
Transition joint for 3‑core PILC BELTED (non‑radial field) cable to three 1‑core polymeric insulated cables. Hybrid solution composed of a cold‑shrink semiconducting breakout and a triple‑wall (stress control – insulating – semiconducting) cold‑shrink body supplied assembled on a removable support. Outer protection is provided by an adhesive‑lined heat‑shrink tube and breakout; hot‑melt adhesive ensures sealing. Designed for underground applications.
Design and components
- Cold‑shrink semiconducting breakout
- Triple‑wall stress control / insulating / semiconducting cold‑shrink body
- Adhesive‑lined heat‑shrink outer sleeve and breakout
- Supplied assembled on removable support for simplified installation
Standards / Compliance
Compliant with CENELEC HD 629.2 S2 and CEI 20‑62/2.
Technical specifications
- Accessory: JOINT
- Application: UNDERGROUND
- Insulation: PAPER (PILC), XLPE
- Screen: BELTED, WIRES
- Armouring: NONE / WITH ARMOUR
- Voltage: 7.2 kV, 12 kV, 17.5 kV, 24 kV, 36 kV
- Cable core: 3 → 3×1 Transition / Mixed
- Type: MIXED
- Technology: COLD‑SHRINK
Catalogs
ECOLD GLM 66
1 Pages
