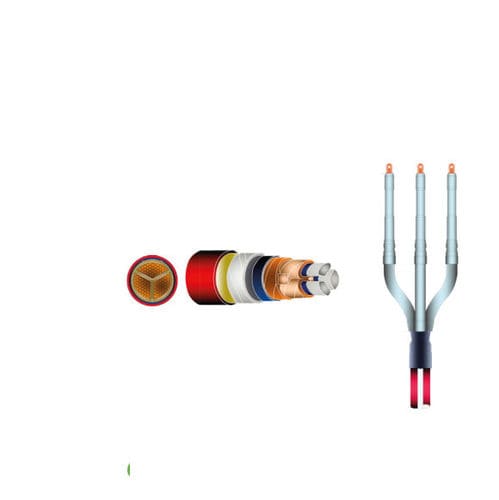

Cold-applied push-on cable termination ECOLD TIC 54E
papermedium-voltageNorms

Cold-applied push-on cable termination - ECOLD TIC 54E - Elcon Megarad Spa - paper / medium-voltage / Norms
Cold-applied push-on cable termination - ECOLD TIC 54E - Elcon Megarad Spa - paper / medium-voltage / Norms
Add to favorites
Compare this product
Go to the Elcon Megarad Spa website for more information

Characteristics

Connection type
cold-applied push-on
Material
paper
Other characteristics
medium-voltage, Norms

Description

Short description
Indoor termination for 3-core (armoured or non armoured) belted (non-radial) paper-insulated cable. The kit includes an oil barrier element, stress control element, cold-shrink anti-tracking bodies and semiconductive breakout.

Components
  • Oil barrier element
  • Stress control element
  • Cold-shrink anti-tracking bodies
  • Semiconductive breakout


Conformity
Compliant with standards CENELEC HD 629.2 S2 and CEI 20-62/2.

Technical information
Armour: X (with armour), Z (without armour)
Voltage ratings: 7.2 kV, 12 kV, 17.5 kV, 24 kV, 36 kV
Cable core: 3 – tripolar
Insulation: paper
Screen: belted (non-radial)
Technology: cold-shrink
Accessory: termination
Type: indoor
Application: standard

Characteristics / technical specifications
  • Type: indoor termination for 3-core cables
  • Cable field: belted (non-radial)
  • Armour options: X (armoured), Z (non-armoured)
  • Supported voltages: 7.2, 12, 17.5, 24, 36 kV
  • Conductors: 3 – tripolar
  • Insulation: paper
  • Screen: belted
  • Technology: cold-shrink
  • Kit content: oil barrier element, stress control element, semiconductive breakout, cold-shrink anti-tracking bodies
  • Application: indoor, standard
