Cold-applied push-on cable termination ECOLD STEI 24 seriesinsulatedsiliconemedium-voltage
Add to favorites
Compare this product
Characteristics
- Connection type
- cold-applied push-on
- Insulation
- insulated
- Material
- silicone
- Other characteristics
- medium-voltage
Description
Description

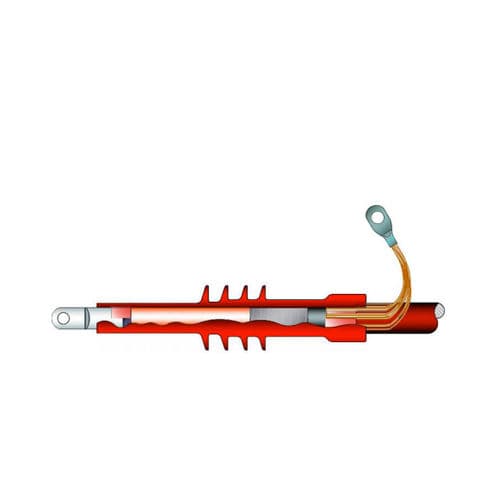

ECOLD STEI is the Elcon Megarad range of push-on terminations designed for indoor connections of polymeric insulated medium-voltage cables up to 24 kV. The product is engineered for straightforward on-site assembly without heating, special tools or carrier tube removal, enabling consistent and repeatable installations. Electrical field stress control is provided by Elcon Megarad's specially formulated high-permittivity tape. The insulator is a one-piece molded anti-tracking silicone rubber offering stable dielectric properties.
Short type
Push-on termination
Standards
Compliant with HD 629.1 S2 and CEI 2062/1.
Technical characteristics
ECOLD STEI is the Elcon Megarad range of push-on terminations designed for indoor connections of polymeric insulated medium-voltage cables up to 24 kV. The product is engineered for straightforward on-site assembly without heating, special tools or carrier tube removal, enabling consistent and repeatable installations. Electrical field stress control is provided by Elcon Megarad's specially formulated high-permittivity tape. The insulator is a one-piece molded anti-tracking silicone rubber offering stable dielectric properties.
Short type
Push-on termination
Standards
Compliant with HD 629.1 S2 and CEI 2062/1.
Technical characteristics
- Product family: ECOLD STEI (push-on terminations)
- Application: Indoor terminations for polymeric insulated medium-voltage cables
- Rated voltage: up to 24 kV
- Installation: no heating required, no special tools, no carrier tube removal
- Electrical stress control: high-permittivity tape formulated by Elcon Megarad
- Insulator: one-piece molded anti-tracking silicone rubber
- Standards: HD 629.1 S2; CEI 2062/1
