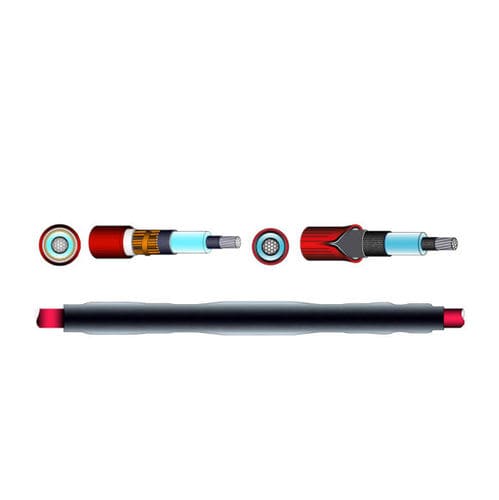

Insulated cable joint ELCOTERM GSIS 61ARarmoredwatertightpolyethylene
Add to favorites
Compare this product
Characteristics
- Protection level
- insulated, armored, watertight
- Material
- polyethylene, polymer
- Applications
- for photovoltaic applications
- Other characteristics
- heat-shrinkable, medium-voltage
Description
Short description
Shield-break heat-shrinkable joint for 1-core polymeric insulated (XLPE) cable with mechanical protection sheath (AR). Available in a version with external grounding. The kit includes stress-control, insulating, multilayer insulating-semi-conductive and adhesive-lined protective heat-shrink tubes. Hot-melt adhesive ensures watertight sealing. Compliant with CENELEC HD 629.1 S2 and CEI 20-62/1.
Application details
Designed to electrically isolate cable screens and to separate different earthing systems. The version with an external braid allows direct grounding of the screens. Suitable for cables with impact-protection sheaths such as "Airbag" or "Shockproof". Typical applications: wind and photovoltaic installations.
Kit contents
Technical characteristics / specifications
Shield-break heat-shrinkable joint for 1-core polymeric insulated (XLPE) cable with mechanical protection sheath (AR). Available in a version with external grounding. The kit includes stress-control, insulating, multilayer insulating-semi-conductive and adhesive-lined protective heat-shrink tubes. Hot-melt adhesive ensures watertight sealing. Compliant with CENELEC HD 629.1 S2 and CEI 20-62/1.
Application details
Designed to electrically isolate cable screens and to separate different earthing systems. The version with an external braid allows direct grounding of the screens. Suitable for cables with impact-protection sheaths such as "Airbag" or "Shockproof". Typical applications: wind and photovoltaic installations.
Kit contents
- Stress-control heat-shrink tubes
- Insulating heat-shrink tubes
- Multilayer insulating–semiconductive tubes
- Protective adhesive-lined heat-shrink tubes
- Hot-melt adhesive liner for sealing
Technical characteristics / specifications
- Technology: HEAT-SHRINK
- Accessory: JOINT
- Insulation: XLPE
- Screen: WIRES
- Armour: X, with armour
- Cablecore: 1 – Single-core
- Voltage: 24 kV, 36 kV
- Type: SHIELD BREAK
- Application: WIND AND PHOTOVOLTAIC PLANTS
- Kit content: stress-control tubes, insulating tubes, multilayer insulating-semicondutive tubes, adhesive-lined protective heat-shrink tubes, hot-melt adhesive
- Version available: also available with external grounding connection
- Standards: CENELEC HD 629.1 S2; CEI 20-62/1
