Quick-disconnect cable termination ELCOSPINA TCE 125C

screwC-tapinsulated

Product description

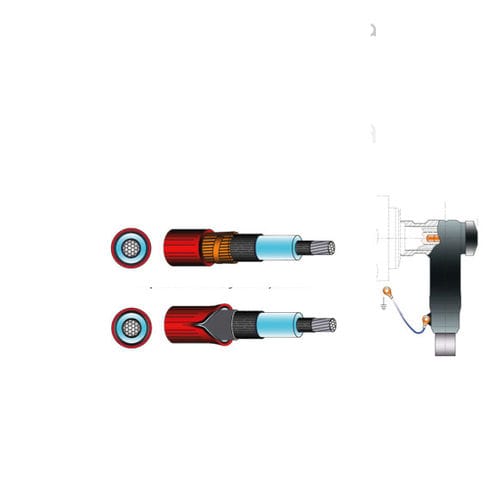

C-type asymmetric disconnectable cable terminal for single-core cables. Rated currents In = 630 A and 1250 A. Designed for connections between switchgear and power transformers. The kit includes an insulating interface body, cable reducer/adapter, screw contact connector, protection cap, mastics and lugs. Insulation: XLPE. Screen: wires or Al tube. Armor: X (with armor). Suitable for 24 kV and 36 kV systems. External cone, disconnectable technology. For indoor applications. Compliant with CENELEC HD 629.1 S2 and CEI 20-62/1.

Kit contents

• Insulating interface body
• Cable reducer / adapter
• Screw contact connector
• Protection cap
• Mastics (sealants)
• Lugs (capicorda)

Technical specifications

• Rated current (In): 630 A and 1250 A
• Cable configuration: 1 core (single-core)
• Interface type: C type asymmetric disconnectable terminal
• Insulation: XLPE
• Screen: wires or Al tube
• Armor: X (with armor)
• Applicable voltages: 24 kV, 36 kV
• Accessory type: terminal
• Application: indoor
• Technology: external cone, disconnectable
• Standards: CENELEC HD 629.1 S2; CEI 20-62/1

Applications

• Connections between switchgear and power transformers
• High-voltage cable terminations (24/36 kV)
• Indoor medium/high-voltage distribution systems

Standards and ordering
Available in In = 630 A and In = 1250 A variants. Contact supplier for ordering codes, lead times and available accessories. Complies with CENELEC HD 629.1 S2 and CEI 20-62/1.
