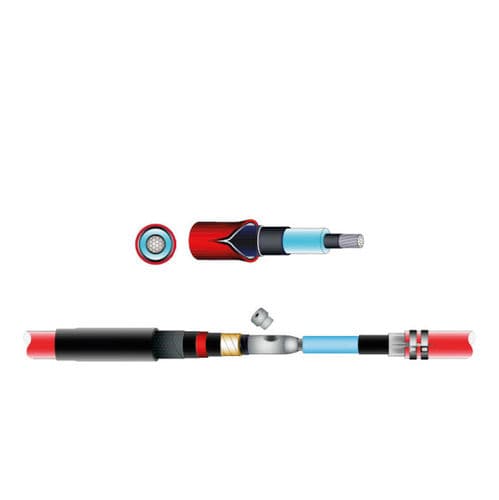

Armored cable joint ELCOTERM GLS 72
insulatedwatertightaluminum

Armored cable joint - ELCOTERM GLS 72 - Elcon Megarad Spa - insulated / watertight / aluminum
Armored cable joint - ELCOTERM GLS 72 - Elcon Megarad Spa - insulated / watertight / aluminum
Add to favorites
Compare this product
Go to the Elcon Megarad Spa website for more information

Characteristics

Protection level
insulated, watertight, armored
Material
aluminum
Other characteristics
medium-voltage, straight, high-voltage, outdoor, heat-shrinkable

Description

Short description
  • 1-core heat-shrink joint kit for aerial type cables
  • The kit includes stress-control, insulating, double-wall insulating–semiconducting and adhesive-lined protective heat-shrink tubes. Hot-melt adhesive on the outer sleeve ensures reliable sealing of the joint.
  • Compliant with standards CENELEC HD 629.1 S2 and CEI 20-62/1


Kit composition
  • Stress-control sleeves
  • Insulating sleeves
  • Double-wall insulating–semiconducting sleeve
  • Adhesive-lined outer heat-shrink sleeve with hot-melt for watertight sealing


Technical specifications
  • Technology: Heat-shrink
  • Accessory: Joint (in-line)
  • Insulation: XLPE
  • Armour: X (armoured)
  • Cable core: 1 — single-core
  • Rated voltage: 7.2 kV; 12 kV; 17.5 kV; 24 kV; 36 kV
  • Screen: Aluminium tube (Al tube)
  • Application: Aerial
