Insulated cable joint ECOLD GLS 89ARarmoredshock resistantpolyethylene
Add to favorites
Compare this product
Characteristics
- Protection level
- insulated, armored, shock resistant
- Material
- polyethylene, copper, aluminum, wire, polymer
- Applications
- for photovoltaic applications
- Other characteristics
- medium-voltage, outdoor
Description
Short description

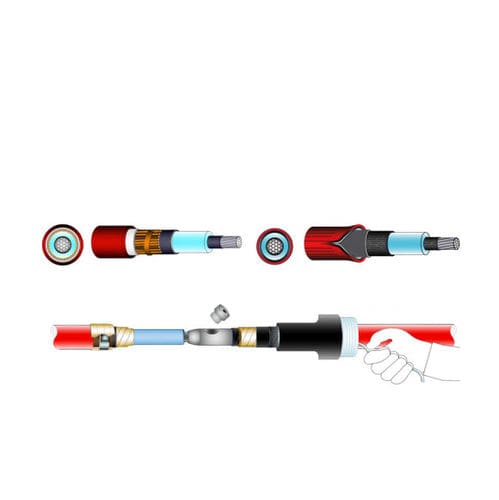

Cold-shrink cable joint for 1-core polymeric insulated (XLPE) cables with wire or aluminium tube screen and polymeric sheath for mechanical protection. Designed for inline connections in wind and photovoltaic installations; available for 24 kV and 36 kV systems.
Product codes / types
ARE4(P1)H5(AR)E(X) and (A)RG7(E4)H1(AR)E(X)
Technical description
The kit comprises a multilayer cold-shrink body (stress control, insulating, semiconducting layers) and an external protective sleeve. The bodies are supplied assembled on a removable support to facilitate on-site installation. This solution is suitable for cables with shock-protective outer covers ("Airbag" or "Shockproof").
Compliance
Compliant with standards CENELEC HD 629.1 S2 and CEI 20-62/1.
Technical details / specifications
Cold-shrink cable joint for 1-core polymeric insulated (XLPE) cables with wire or aluminium tube screen and polymeric sheath for mechanical protection. Designed for inline connections in wind and photovoltaic installations; available for 24 kV and 36 kV systems.
Product codes / types
ARE4(P1)H5(AR)E(X) and (A)RG7(E4)H1(AR)E(X)
Technical description
The kit comprises a multilayer cold-shrink body (stress control, insulating, semiconducting layers) and an external protective sleeve. The bodies are supplied assembled on a removable support to facilitate on-site installation. This solution is suitable for cables with shock-protective outer covers ("Airbag" or "Shockproof").
Compliance
Compliant with standards CENELEC HD 629.1 S2 and CEI 20-62/1.
Technical details / specifications
- Accessory: JOINT
- Type: INLINE
- Insulation: XLPE
- Screen: WIRE, Al TUBE
- Armour: X, With armour
- Cable core: 1 – Single-core
- Voltage: 24 kV, 36 kV
- Technology: COLD-SHRINK
- Application: WIND AND PHOTOVOLTAIC INSTALLATIONS
- Composition: Multilayer cold-shrink body (stress control, insulating, semiconducting) + external protective sleeve
- Supply: Bodies assembled on removable support
- Suitable for: cables with shock-protective outer covers ("Airbag" or "Shockproof")
- Standards: Compliant with CENELEC HD 629.1 S2, CEI 20-62/1
Catalogs
ECOLD GLS 89AR
1 Pages
