Underground cable joint ELCOTERM GLM 63armoredinsulatedfor transition connections
Add to favorites
Compare this product
Characteristics
- Mounting
- underground
- Protection level
- armored, insulated
- Applications
- for transition connections, for paper-insulated cables, for polymer-insulated cables
- Other characteristics
- PILC to XLPE, medium-voltage, heat-shrinkable
Description
Short description (EN)

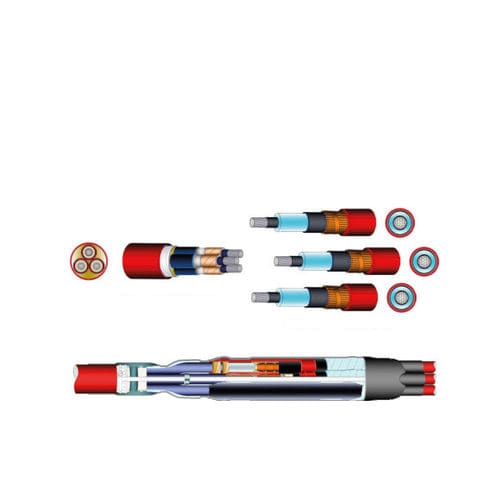

Transition joint for 3‑core PILC (paper‑insulated lead covered, radial field) cable to three 1‑core polymeric insulated cables. Heat‑shrink kit including transparent oil barrier, stress control elements, insulating and double‑wall insulating‑semiconducting tubes, adhesive‑lined protective heat‑shrink and breakout. Hot‑melt adhesive provided for reliable sealing.
Compliance
Compliant with CENELEC HD 629.2 S2 and CEI 20‑62/2 standards.
Kit components
Technical specifications
Transition joint for 3‑core PILC (paper‑insulated lead covered, radial field) cable to three 1‑core polymeric insulated cables. Heat‑shrink kit including transparent oil barrier, stress control elements, insulating and double‑wall insulating‑semiconducting tubes, adhesive‑lined protective heat‑shrink and breakout. Hot‑melt adhesive provided for reliable sealing.
Compliance
Compliant with CENELEC HD 629.2 S2 and CEI 20‑62/2 standards.
Kit components
- Transparent oil barrier
- Stress control elements
- Insulating tubes
- Double‑wall insulating‑semiconducting tubes
- Adhesive‑lined protective heat‑shrink tubes
- Breakout/trifurcation
- Hot‑melt adhesive for sealing
Technical specifications
- Technology: HEAT‑SHRINK
- Accessory type: TRANSITION JOINT
- Application: UNDERGROUND
- Insulation: PAPER (PILC), XLPE
- Screen: 3‑lead sheath, wires
- Armour: X (with armour), Z (without armour)
- Rated voltage: 7.2 kV; 12 kV; 17.5 kV; 24 kV; 36 kV
- Cable core configuration: 3 → 3×1 mixed/transition
- Type: MIXED
- Conformity: CENELEC HD 629.2 S2; CEI 20‑62/2
