Polyurethane resin cable joint ELCOBLOK GLM 60

for transition connectionsfor paper-insulated cablesfor polymer-insulated cables

Product overview

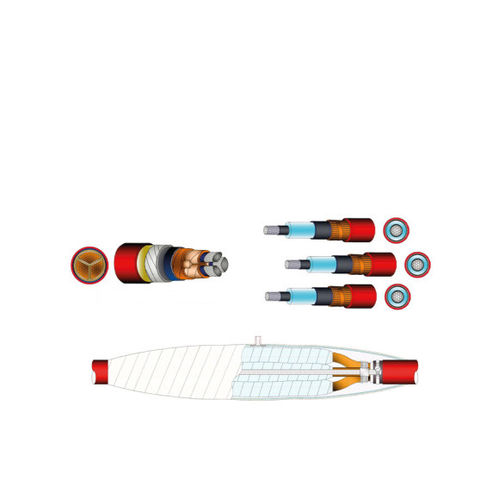

Transition joint kit for connecting a 3-core belted (non-radial field) PILC cable to three single-core polymeric cables. The kit supplies materials for insulation restoration and for creating a mechanically protective outer shell by means of injectable polyurethane resin and a room-temperature hardener. Materials are selected to ensure reliable dielectric repair and long-term sealing of the joint.

Components

• Self-bonding (autoagglomerating) tapes with high dielectric properties for insulation restoration
• Injectable polyurethane resin for outer protection
• Room-temperature hardener for curing the outer protection

Compliance / Standards
Compliant with CENELEC HD 629.1 S2 and CEI 20-62/1.

Technical characteristics / specifications

• Type: Transition joint kit
• Application: Transition between 3-core belted (non-radial field) PILC cable and three single-core polymeric cables
• Insulation repair materials: Self-bonding tapes with high dielectric properties
• Outer protection materials: Injectable polyurethane resin with room-temperature hardener
• Function: Restoration of insulation and formation of external mechanical protection for the joint
• Standards: CENELEC HD 629.1 S2, CEI 20-62/1
