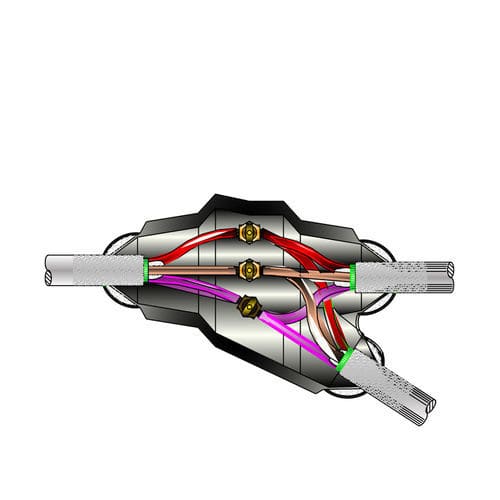

Armored cable joint ELCOBLOK GDU
resinfor paper-insulated cablesfor polymer-insulated cables

Armored cable joint - ELCOBLOK GDU - Elcon Megarad Spa - resin / for paper-insulated cables / for polymer-insulated cables
Armored cable joint - ELCOBLOK GDU - Elcon Megarad Spa - resin / for paper-insulated cables / for polymer-insulated cables
Add to favorites
Compare this product
Go to the Elcon Megarad Spa website for more information

Characteristics

Protection level
armored
Material
resin
Applications
for polymer-insulated cables, for paper-insulated cables
Other characteristics
with liquid resin

Description

Short description (EN)
Resin joint for polymeric or paper-insulated single-core or multi-core cables. The kit includes a robust, easy-to-assemble containment housing and a room-curing polyurethane resin. The joint provides mechanical protection and an effective seal.

Standards (EN)
Compliant with CENELEC HD 623 and CEI EN 50393.

Attributes / Details
Accessory: JOINT
Insulation: PAPER, XLPE
Armour: X (armoured)
Technology: RESIN
Application: STANDARD
Screen: N.A.
Cable cores: 4 – multi-core
Voltage: 1.2 kV
Type: TAP-OFF

Technical specifications
  • Type: resin joint for single-core or multi-core cables
  • Kit: containment housing with stepped entries to adapt to cables
  • Resin material: room-curing polyurethane resin
  • Functions: mechanical protection and sealing
  • Compatible insulations: paper-impregnated, XLPE
  • Supported armour: armoured (X)
  • Number of conductors: 4 – multi-core
  • Rated voltage: 1.2 kV
  • Technology: resin
  • Application: standard
  • Screen: not applicable (N.A.)
  • Standards: compliant with CENELEC HD 623 and CEI EN 50393
