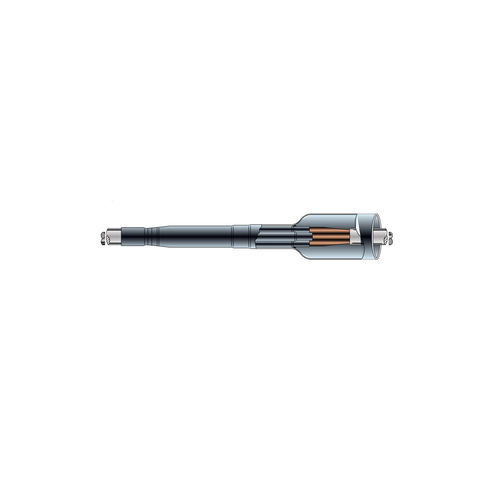

Waterproof cable joint ELCOTERM GLS 50armoredinsulatedsteel
Add to favorites
Compare this product
Characteristics
- Protection level
- insulated, waterproof, armored
- Material
- polyolefin, steel
- Applications
- for polymer-insulated cables
- Other characteristics
- straight, heat-shrinkable
Description
Overview
Heat-shrink straight joints for polymeric insulated multicore cables. The kit includes heat-shrink insulating tubes for phase rejacketing and an adhesive-lined sealing tube for outer sheath reconstruction. Integrated hot-melt adhesive ensures watertight sealing. Mechanical protection for armoured cable joints is provided by a steel joint case (canister).
Standards
Compliant with CENELEC HD 623 and CEI EN 50393.
Technical specifications
Kit contents
Heat-shrink straight joints for polymeric insulated multicore cables. The kit includes heat-shrink insulating tubes for phase rejacketing and an adhesive-lined sealing tube for outer sheath reconstruction. Integrated hot-melt adhesive ensures watertight sealing. Mechanical protection for armoured cable joints is provided by a steel joint case (canister).
Standards
Compliant with CENELEC HD 623 and CEI EN 50393.
Technical specifications
- Joint type: straight, heat-shrink
- Number of conductors: 4 — multicore
- Compatible insulation: XLPE
- Armoured cable: yes (X, with armour)
- Rated voltage: 1.2 kV
- Application: standard, inline
- Mechanical protection: joint case (canister) for armoured versions
- Sealing: adhesive-lined heat-shrink tubes with hot-melt adhesive
Kit contents
- Heat-shrink insulating tubes for phase rejacketing
- Adhesive-lined sealing tube for cable outer sheath reconstruction
- Integrated hot-melt adhesive for sealing
- Steel joint case (canister) for mechanical protection of armoured cable joints
Catalogs
No catalogs are available for this product.
