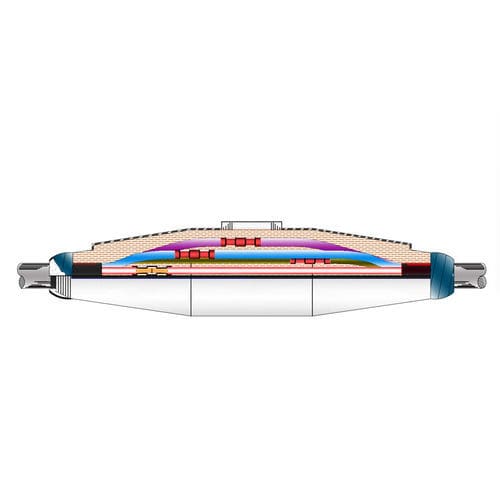

Armored cable joint ELCOSIGNAL GLS 0125resinpolyurethanewith liquid resin
Add to favorites
Compare this product
Characteristics
- Protection level
- armored
- Material
- polyurethane, resin
- Other characteristics
- straight, with liquid resin
Description
Product overview
Cast-resin straight joint designed for shielded twisted-pair cables with armor and protective outer sheath. Intended for installation in detection apparatus measuring current imbalance at 50 Hz between the two rails of coded track circuits. The kit includes a housing designed for rapid installation and a room-curing polyurethane resin for on-site casting.
Kit contents
Applications
For railway use: detection of current imbalance at 50 Hz between rails in coded track circuits and related signaling equipment.
Conformity
Compliant with Omologazione F.S. N° 12423 17.6.1986 cat.807/285
Technical specifications
Cast-resin straight joint designed for shielded twisted-pair cables with armor and protective outer sheath. Intended for installation in detection apparatus measuring current imbalance at 50 Hz between the two rails of coded track circuits. The kit includes a housing designed for rapid installation and a room-curing polyurethane resin for on-site casting.
Kit contents
- Containment housing with stepped cable entries for cable adaptation
- Room-curing polyurethane resin
- Four pre-insulated low-voltage connectors (red)
- Fork clamp (morsetto a cavallotto) type 6
Applications
For railway use: detection of current imbalance at 50 Hz between rails in coded track circuits and related signaling equipment.
Conformity
Compliant with Omologazione F.S. N° 12423 17.6.1986 cat.807/285
Technical specifications
- Accessory: JOINT
- Type: INLINE
- Insulation: XLPE
- Armor: With armor (armored)
- Technology: RESIN
- Screen: N.A.
- Cable cores: 4 – multicore
- Voltage: 1.2 kV
- Application: RAILWAY
