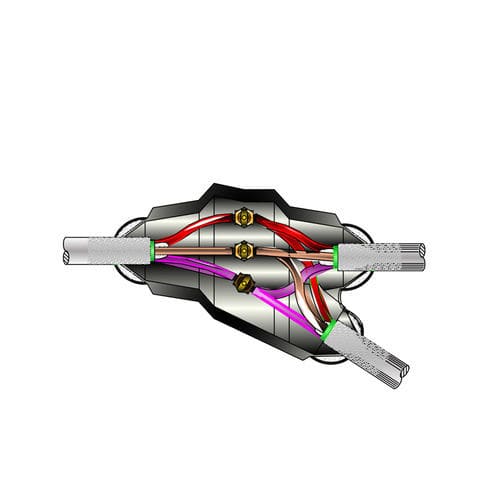

Underground cable joint ELCOSOFT GDR

armoredresinfor paper-insulated cables

Description
Re-enterable resin joint designed for single- or multi-core polymeric or paper-insulated cables. The kit includes a robust containment housing with stepped cable entries and a room-curing re-enterable polyurethane resin. Provides mechanical protection and reliable sealing for branch and through joints in medium-voltage networks (1.2 kV rating).

Key features

• Re-enterable polyurethane resin, room curing
• Containment housing with stepped cable entries for cable adaptation
• Compatible with paper-insulated and XLPE insulated cables
• Supports single-core and multi-core configurations; typical use: 4-core
• Armored cable compatible
• Nominal voltage: 1.2 kV
• Easy to assemble and serviceable on site

Technical specifications

• Product type: Re-enterable resin joint
• Insulation compatibility: paper impregnated, XLPE
• Number of cores: single-core and multi-core; indicated: 4-core
• Armouring: present (armored)
• Voltage rating: 1.2 kV
• Technology: re-enterable polyurethane resin, room curing
• Construction: stepped entry housing for cable adaptation
• Function: mechanical protection and sealing
• Standards: CENELEC HD 623, CEI EN 50393

Applications

• Branching and repair of underground and industrial cable networks
• Maintenance operations requiring re-entry and inspection
• Use in substations, distribution lines and utilities

Standards & ordering

• Compliance: CENELEC HD 623, CEI EN 50393
• Model: ELCOSOFT GDR
• Voltage: 1.2 kV
• Core configuration: up to 4-core multipolar
