Resin cable joint ELCOSOFT GLRpolyurethanepolyurethane resinrepair
Add to favorites
Compare this product
Characteristics
- Material
- polyurethane, resin, polyurethane resin
- Applications
- for polymer-insulated cables, for paper-insulated cables, repair
- Other characteristics
- for low-voltage cables, with liquid resin
Description
Description

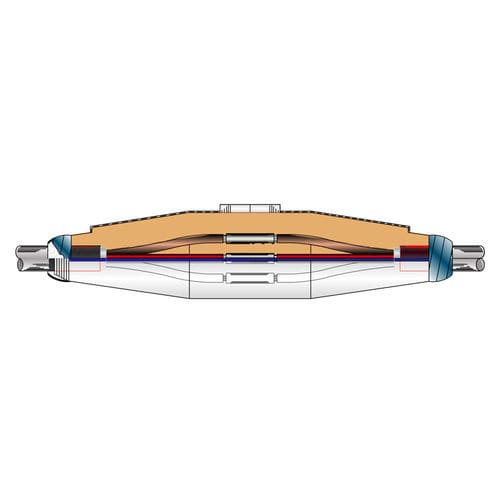

Re-enterable resin cable joint designed for single- or multi-core polymeric (XLPE) or paper-impregnated power cables rated up to 1.2 kV. The kit includes a robust housing with stepped cable entries and a room‑curing, re‑enterable polyurethane resin. The assembly provides mechanical protection and a reliable seal for inline jointing; suitable for installations with or without armouring. Compliant with CENELEC HD 623 and CEI EN 50393.
Key features
Applications
Technical specifications
Re-enterable resin cable joint designed for single- or multi-core polymeric (XLPE) or paper-impregnated power cables rated up to 1.2 kV. The kit includes a robust housing with stepped cable entries and a room‑curing, re‑enterable polyurethane resin. The assembly provides mechanical protection and a reliable seal for inline jointing; suitable for installations with or without armouring. Compliant with CENELEC HD 623 and CEI EN 50393.
Key features
- Re‑enterable, room‑curing polyurethane resin
- Robust housing with stepped cable entries for adaptation to different cable diameters
- Provides mechanical protection and effective sealing
- Suitable for single‑core and multi‑core polymeric or paper‑impregnated cables
- Standards: CENELEC HD 623; CEI EN 50393
Applications
- Inline jointing of 1.2 kV distribution and power cables
- Situations requiring re‑enterability for inspection or maintenance
- Indoor and protected outdoor industrial installations
Technical specifications
- Accessory: cable joint
- Type: in-line
- Insulation: paper, XLPE
- Armouring: compatible with armoured or non‑armoured cables
- Technology: resin
- Screen: N.A.
- Cable cores: 4 – multi‑core
- Voltage rating: 1.2 kV
- Application: re‑enterable
- Compliance: CENELEC HD 623; CEI EN 50393
