Cold-applied push-on cable termination ELCOSTOP TIUBA seriesinsulatedresinmolded resin
Add to favorites
Compare this product
Characteristics
- Connection type
- cold-applied push-on
- Insulation
- insulated
- Material
- resin, molded resin, polyurethane resin
- Other characteristics
- medium-voltage
Description
Short description (EN)

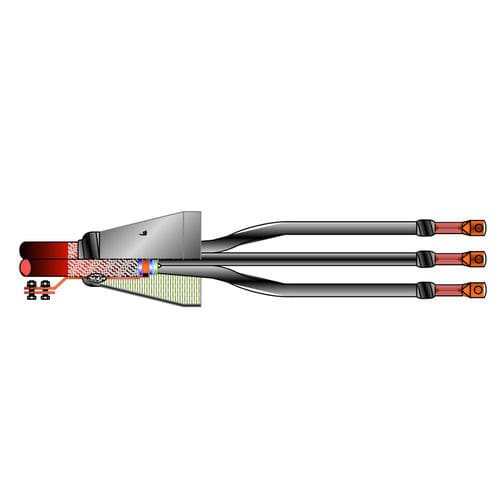

Indoor resin-cast termination kit for railway power cables RG50NR/8, suitable for 3-core (tripolar) XLPE conductors. The kit includes a molded housing with stepped cable entries and a room-curing polyurethane resin. An earthing kit is supplied according to Italian National Railways (Ferrovie dello Stato) specifications.
Compliance
Approved under F.S. Homologation N° 11096 30.5.1986 cat.807/403
Kit composition
Technical characteristics / specifications
Installation and use
To be installed by qualified personnel in accordance with railway standards. Verify cable dimensions and compatibility with RG50NR/8 prior to assembly. Follow resin curing times and grounding instructions provided with the kit.
Indoor resin-cast termination kit for railway power cables RG50NR/8, suitable for 3-core (tripolar) XLPE conductors. The kit includes a molded housing with stepped cable entries and a room-curing polyurethane resin. An earthing kit is supplied according to Italian National Railways (Ferrovie dello Stato) specifications.
Compliance
Approved under F.S. Homologation N° 11096 30.5.1986 cat.807/403
Kit composition
- Housing with stepped entries for cable adaptation
- Room-curing polyurethane resin
- Earthing kit as specified by Italian National Railways
Technical characteristics / specifications
- Insulation: XLPE
- Armour: with armouring
- Cable cores: 3 – tripolar
- Technology: resin-cast termination
- Accessory type: termination
- Location: indoor
- Screen: N.A.
- Nominal voltage: 1.2 kV
- Application: railway power supply
- Note: product indicated for use up to 3 kV (refer to usage specifications)
Installation and use
To be installed by qualified personnel in accordance with railway standards. Verify cable dimensions and compatibility with RG50NR/8 prior to assembly. Follow resin curing times and grounding instructions provided with the kit.
