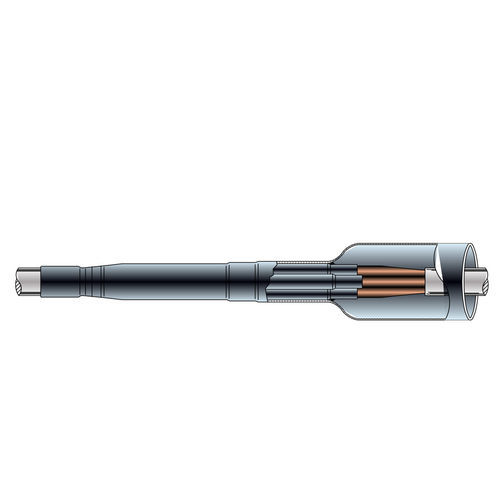

Waterproof cable joint ELCOTERM GLPS 40

submersiblefor marine applicationswith liquid resin

Overview
The ELCOTERM GLPS 40 heat-shrink joint kit is designed for in-line power cable joints on subsea or submersible pumps. It provides insulation, external sheath reconstruction and sealing for 4-core XLPE cables up to 1.2 kV, intended for industrial underwater power installations.

Kit contents

• 4 heat-shrink tubes for connector insulation
• 1 external recovery sleeve for sheath reconstruction
• Sealing mastics and hot-melt adhesive integrated in the sleeves
• 4 butt connectors (head-to-head)

Key specifications

• Technology: heat-shrink
• Accessory: joint (in-line)
• Insulation: XLPE
• Armor: with armor
• Screen: N.A.
• Cable cores: 4 — multipolar
• Rated voltage: 1.2 kV
• Application: submersible pumps

Standards and compliance
Compliant with CENELEC HD 623 and CEI EN 50393. Materials and assembly are selected to meet requirements for underwater cable jointing where these standards apply.

Applications and installation notes

• Suitable for in-line repairs or permanent joints on submersible pump power cables
• Provides mechanical protection and sealing when installed according to the manufacturer's instructions
• Installation recommended for qualified technicians; follow applicable standards and local regulations
