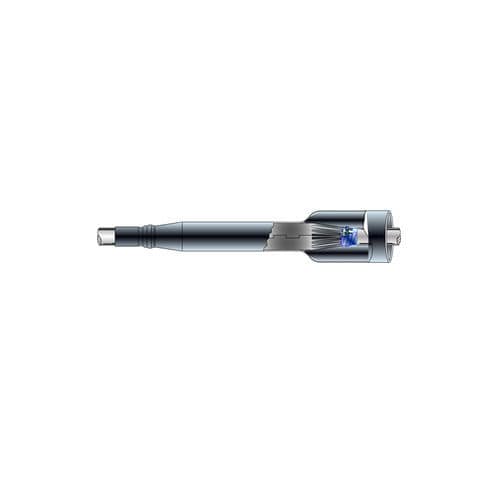

Armored cable joint ELCOTERM GLS 70

insulatedfor polymer-insulated cablesmedium-voltage

Overview
The ELCOTERM GLS 70 is a heat-shrink straight joint kit designed for polymeric insulated multicore cables. It provides phase re‑jacketing and outer sheath restoration using adhesive‑lined heat‑shrink tubing; the hot‑melt adhesive ensures effective sealing of the joint. Mechanical protection for armoured cable joints is provided by a joint case (canister).

Kit contents

• Heat-shrink insulating tubes for each phase
• Adhesive-lined heat-shrink sealing tube for outer sheath protection
• Hot-melt adhesive lining to ensure sealing
• Joint case (canister) for mechanical protection of armoured cable joints (where applicable)

Standards and compliance
Compliant with standards CENELEC HD 623 and CEI EN 50393.

Technical specifications

• Technology: heat-shrink
• Accessory: joint
• Type: straight (inline)
• Insulation: XLPE
• Armouring: Z / without armouring
• Application: standard cable joints
• Screen: N.A.
• Cable cores: 4 – multicore
• Rated voltage: 1.2 kV

Installation and application
Suitable for in-line joints on polymeric insulated multicore cables up to 1.2 kV. The kit is used to rebuild phase insulation and restore the outer sheath; apply heat uniformly to shrink tubing and activate the hot-melt adhesive for sealing. For armoured cables, install the joint case to provide mechanical protection. Installation should be performed by qualified technicians following applicable standards and safety procedures.
