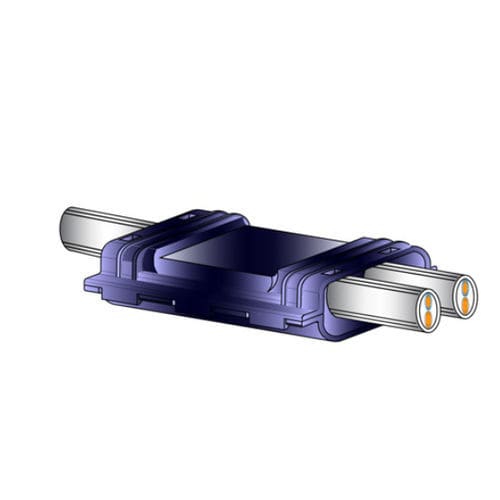

Underground cable joint ELCOGEL seriesarmoredinsulatedself-extinguishing
Add to favorites
Compare this product
Characteristics
- Mounting
- underground
- Protection level
- insulated, self-extinguishing, IP68, armored
- Material
- plastic, silicone
- Applications
- for polymer-insulated cables, for branch connections
- Other characteristics
- medium-voltage, gel, straight, outdoor
Description
Product overview
Re-enterable gel joint for polymeric insulated cables, suitable for straight or branch connections. Double-insulation design with IP68 protection. The snap-to-close housing is made of self-extinguishing material and the silicone gel ensures both electrical insulation and environmental sealing. An adjustable mechanical clamping system secures a stable connection across cable diameters.
Main features
Technical specifications
Standards and compliance
CENELEC HD 623; CEI EN 50393
Applications and compatibility
Installation and maintenance
Includes adjustable mechanical clamp for secure fixing. Designed for re-entry to facilitate inspection or modification without full replacement.
Re-enterable gel joint for polymeric insulated cables, suitable for straight or branch connections. Double-insulation design with IP68 protection. The snap-to-close housing is made of self-extinguishing material and the silicone gel ensures both electrical insulation and environmental sealing. An adjustable mechanical clamping system secures a stable connection across cable diameters.
Main features
- Re-enterable gel joint: straight or branch configuration
- Double insulation with silicone gel providing sealing and insulation
- Snap-to-close, self-extinguishing housing
- Adjustable mechanical clamping system for various cable diameters
- Suitable for XLPE insulated cables; armoured variants available
- Rated for 1.2 kV systems
Technical specifications
- Protection rating: IP68
- Housing: self-extinguishing material, snap-to-close
- Gel: silicone
- Cable cores: 4-core / multipolar
- Armouring: with armouring
- Screen: N.A.
- Nominal voltage: 1.2 kV
- Technology: GEL
Standards and compliance
CENELEC HD 623; CEI EN 50393
Applications and compatibility
- Underground and outdoor cable joints
- Power distribution and industrial installations
- Polymeric insulated cables (XLPE)
Installation and maintenance
Includes adjustable mechanical clamp for secure fixing. Designed for re-entry to facilitate inspection or modification without full replacement.
