TCP/IP wireless sensor network (WSN) coordinator PFNY6-005L9-110 YOCTO NET

ModbusRS422/RS485for electrical installation

Overview

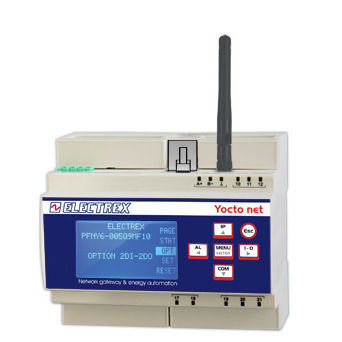

Network bridge between the Ethernet port and the RS485 port for Modbus communication and data acquisition from Electrex instruments on a subnetwork. Acts as the coordinator of the E-Wi wireless network with a connector for an external antenna (antenna included). Operates on 868 MHz to manage end devices that transmit pulse counts and/or environmental measurements via radio.

Wireless coordinator and supported devices

• Coordinator of the E-Wi wireless network (868 MHz)
• Manages end devices such as Deca Sensor E-Wi 868 and Deca Sensor E-Wi 868 THL

Features and services

• Graphic FSTN display
• Perpetual battery-backed astronomical clock/calendar
• Industrial-grade non-volatile memory
• Remote firmware upgrade capability
• Log 8 data storage service (logs digital inputs and up to 7 instruments on RS485 and/or E-Wi 868 subnetworks with power/energy and input data)
• Web Server with active Web Upgrade for viewing main instantaneous measurements
• FTP Server
• ExpBus interface for external devices (inputs, outputs, and environmental sensors)
• Equipped with NFC technology

Mounting and power

• DIN rail mounting, 6 modules
• Power supply: 85÷265 Vac / 100÷374 Vdc

Product code
Cod. PFNY6-005L9-110

Main applications

• Gateway and data management for Electrex RS485 and E-Wi 868 MHz wireless networks
• Collection and logging of digital inputs and instruments on subnetworks
• Local display of measurements and remote access via Web/FTP

Technical features / specifications

• Function: Network bridge between Ethernet and RS485 for Modbus communication and data acquisition
• Wireless protocol: E-Wi (868 MHz)
• Antenna: Connector for external antenna (antenna included)
• Supported end devices: Deca Sensor E-Wi 868, Deca Sensor E-Wi 868 THL (pulse counts and environmental measurements)
• Display: Graphic FSTN display
• Clock/Calendar: Perpetual battery-backed astronomical clock/calendar
• Memory: Industrial-grade non-volatile memory
• Firmware: Remote firmware upgrade capability
• Data logging: Log 8 — logs digital inputs and up to 7 instruments on RS485 and/or E-Wi 868 subnetworks (power/energy and input data)
• Web services: Web Server with active Web Upgrade; FTP Server
• Interfaces: RS485 (Modbus), Ethernet, ExpBus (external I/O and sensors), NFC
• Mounting: DIN rail, 6 modules
• Power supply range: 85÷265 Vac / 100÷374 Vdc
