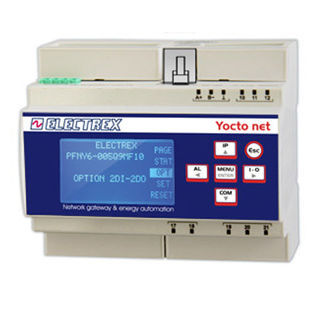

DIN rail mounted Ethernet bridge PFNY6-005D9-150 YOCTO NET D6 WEB LOG 40

industrial

Overview
PFNY6-005D9-150 YOCTO NET D6 is a web data manager that functions as a network bridge between the Ethernet network and an RS485 line to enable communication and Modbus data-logging of Electrex devices. It includes an FSTN graphic display, an astronomical perpetual clock/calendar with battery backup and industrial non‑volatile memory, remote firmware update capability and built‑in WEB server with Upgrade Web option for real‑time measurement pages. The device ships with 5 × Log 8 logging services pre‑activated and supports FTP server functionality.

Main features

• 2 digital inputs and 2 digital outputs with separate common terminals
• ExpBus high‑speed communication and port for external I/O modules and environmental sensors
• Integrated NFC connectivity
• Mounting size: 6 DIN modules
• Wide power supply: 85–265V AC / 100–374V DC

Note
YOCTO NET D6 units are available in multiple hardware configurations. To select the correct model code for a specific version, consult the product code table or the manufacturer datasheet.

Technical specifications

• Function: Network bridge between Ethernet and RS485 for Modbus communication and data‑logging of Electrex instruments
• Display: FSTN graphic display
• Clock/Calendar: Astronomical perpetual clock/calendar, battery‑backed, non‑volatile
• Memory: Industrial‑grade non‑volatile memory
• Firmware: Remote firmware update (OTA) supported
• Web: Built‑in WEB server with Upgrade Web option and standard pages for real‑time measurements
• Logging: Pre‑activated 5 × Log 8 services (internal inputs and up to 39 Electrex instruments in a sub‑network)
• Server: FTP server available
• Digital I/O: 2 digital inputs, 2 digital outputs with separate common terminals
• Communications: ExpBus high‑speed communication, port for external I/O modules and sensors
• Connectivity: NFC
• Mechanical size: 6 DIN modules
• Power supply: 85–265V AC / 100–374V DC
