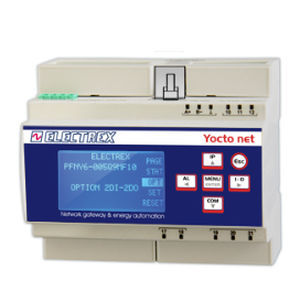

Industrial gateway PFNY6-00509-100 YOCTO NET D6 WEB

telemetrycommunicationModbus RTU

Product name
YOCTO NET D6 Web Data Manager (Cod. PFNY6-00509-100).

Overview
Network bridge between Ethernet (Modbus TCP/IP) and RS485 (Modbus RTU) for communication and data logging of Electrex devices. Built-in WEB server for real-time measurement display. Wide range power supply 85÷265V AC / 100÷374V DC.

Main functions and features

• Modbus-TCP Server (up to 4 simultaneous connections).
• Astronomical perpetual clock/calendar, battery-backed and non-volatile industrial memory.
• Remote firmware update.
• Built-in WEB Server with optional Upgrade Web to add custom pages and additional functions (PUK activation).
• FTP Server.
• ExpBus high-speed communication; port for external I/O modules and environmental sensors.
• NFC technology for configuration/identification.
• DIN-rail mount, 6 modules width.
• Wide range power supply: 85÷265V AC / 100÷374V DC.

Applications / Capabilities
Energy monitoring, energy automation, alarms and notifications, calendar-based scheduling, power quality analysis.

Versions and expandability
Versions with built-in SI (Sensor Inputs) module support integration of external environmental sensors and additional I/O modules.

Optional software/firmware upgrades (PUK activation codes)

• Net upgrade Log 8 (PUK) Cod. PFSU940-01 — Enables one logging service (e.g. log of 8 instruments/Modbus registers: power/energy and digital inputs). Up to 8 Log 8 options can be activated.
• Net upgrade Log 16 (PUK) Cod. PFSU940-02 — Expands storage from Log 8 to Log 16 (requires Log 8 already active).
• Net upgrade Open Log (PUK) Cod. PFSU940-25 — Allows modification of sampling frequency and selection of parameters for an existing Log 8 service (each Open Log PUK modifies one Log 8).
• Net upgrade WEB Open (PUK) Cod. PFSU940-10 — Adds ability to upload and display custom web pages.
• Net upgrade Charts (PUK) Cod. PFSU940-30 — Enables daily charts (energy, temperature, humidity, luminosity, etc.) from stored files with CSV export.
• Net upgrade Energy Automation (PUK) Cod. PFSU940-16 — Adds Energy Automation tasks with Ladder programming for ON/OFF, alarms/notifications and automations based on events/calendars (Calendars option required); supports e-mail/SMS actions (E-Mail/SMS option required).
• Net upgrade Calendars (PUK) Cod. PFSU940-20 — Creates calendars for time tariffs and automation schedules.
• Net upgrade E-Mail / SMS (PUK) Cod. PFSU940-15 — Adds notification via e-mail (and SMS via specific modem/router); compatible with Energy Automation.

Notes
Additional functions available via firmware upgrades (PUK). Designed for integration in monitoring networks and data logging of Electrex instruments and sensors.

Characteristics / technical specifications

• Product code: PFNY6-00509-100
• Commercial denomination: YOCTO NET D6 Web
• Function: Gateway / Web Data Manager / Network bridge (Modbus TCP/IP ↔ Modbus RTU)
• Modbus-TCP Server: up to 4 simultaneous connections
• Clock: Astronomical perpetual clock/calendar, battery-backed
• Memory: industrial non-volatile memory
• Firmware: remote update; optional features via PUK codes
• Servers: Built-in WEB Server; FTP Server
• Communication: ExpBus high-speed; port for external I/O modules and environmental sensors
• Connectivity: RS485 (Modbus RTU), Ethernet (Modbus TCP/IP)
• Configuration: NFC technology
• Mounting: DIN-rail, width 6 modules
• Power supply: 85÷265V AC / 100÷374V DC
