Telemetry gateway PFNY6-005D9-110 YOCTO NET D6 WEB LOG 8

industrialcommunicationserial

Overview

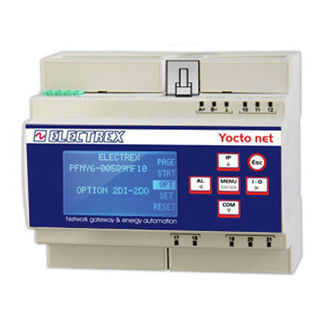

Network bridge between the Ethernet network and the RS485 line for communication and data-logging of Electrex devices. FSTN graphic display. Perennial, battery-powered astronomical clock / calendar and industrial-type non-volatile memory. Remote firmware update. Already activated one Log 8 logging service (log of self internal inputs and other 7 Electrex instruments connected in a sub-network, power / energy and relative digital inputs). Web server with Web Upgrade option: standard web pages for real-time measures displaying. FTP Server. 2 digital inputs and 2 digital outputs with separate common. ExpBus, high speed communication, port for external devices (inputs and outputs modules, and environmental sensors). NFC technology. Size: 6 DIN modules. Power supply 85÷265V AC / 100÷374V DC.

Note
Yocto Net D6 series devices may also be required in other hardware configurations. To build the code with the different versions, refer to the "Code creation table" or to the product datasheet and installation instructions available for the Yocto Net D6 Web.

Features

• Network bridge (Ethernet ↔ RS485)
• FSTN graphic display
• Perennial battery-powered astronomical clock / calendar
• Industrial non-volatile memory
• Remote firmware update
• Log 8 logging service (self internal inputs + up to 7 Electrex instruments in sub-network)
• Web server with Web Upgrade option (real-time measures pages)
• FTP Server
• 2 digital inputs
• 2 digital outputs (with separate common)
• ExpBus high-speed communication
• Port for external I/O modules and environmental sensors
• NFC technology
• Size: 6 DIN modules
• Power supply: 85÷265V AC / 100÷374V DC

Characteristics / Technical specifications

• Model / Series: YOCTO NET D6
• Function: Gateway / Data logger / Web data manager
• Communication: Ethernet and RS485 bridge
• Display: FSTN graphic display
• Clock: Perennial, battery-powered astronomical clock / calendar
• Memory: Industrial-type non-volatile memory
• Firmware: Remote firmware update supported
• Logging: One active Log 8 logging service (local inputs and up to 7 networked Electrex instruments)
• Server: Embedded web server, FTP server
• Digital I/O: 2 digital inputs, 2 digital outputs with separate common
• Expansion: ExpBus high speed communication; port for external I/O modules and environmental sensors
• Other: NFC technology
• Mechanical size: 6 DIN modules
• Power supply range: 85÷265V AC / 100÷374V DC
• Notes: Multiple hardware configurations available (see Code creation table and datasheet)
