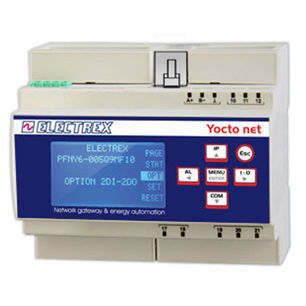

Communication gateway PFNY6-005D9-F10 YOCTO NET D6 WEB LOG 8 FULL

industrialtelemetryLAN

Product overview
YOCTO NET D6 WEB LOG 8 FULL (PFNY6-005D9-F10) is a Web Data Manager and gateway that bridges Ethernet and RS485 for Modbus communication and data logging of Electrex instruments. It provides local FSTN graphic display, a perennial battery-backed astronomical clock/calendar, industrial non-volatile memory and remote firmware update capabilities. The unit includes NFC for quick configuration and an ExpBus for external I/O and environmental sensors.

Available documents

• Datasheet Yocto net D6 Web (Type: pdf)
• Installation instructions Yocto net D6 Web (Type: pdf)
• Code Creation Table (Type: pdf)

Note
Devices in the YOCTO NET D6 series can be ordered in different hardware configurations. To select the correct variant and build the product code, consult the "Code Creation Table" or the product datasheet.

Technical specifications

• Function: Network bridge between Ethernet and RS485 for Modbus communication and data logging of Electrex instruments
• Display: FSTN graphic display
• Clock/Calendar: Perennial astronomical clock/calendar with battery
• Memory: Industrial-type non-volatile memory
• Firmware: Remote firmware update supported
• Logging: One Log 8 service pre-activated (logs internal inputs and up to 7 Electrex instruments in a sub-network including power/energy and digital inputs)
• Web: Built-in web server with Upgrade Web and Charts for real-time and historical data; optional modules: Energy Automation, Calendars, Email
• FTP Server: Yes
• Digital I/O: 2 digital inputs and 2 digital outputs with separate common
• Communication: ExpBus high-speed communication; port for external I/O modules and environmental sensors
• Connectivity: NFC technology
• Size: 6 DIN modules
• Power supply: 85÷265V AC / 100÷374V DC
• Product code: PFNY6-005D9-F10
