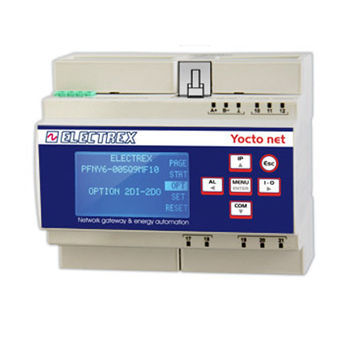

Communication gateway PFNY6-005D9-A10 YOCTO NET D6 WEB LOG 8 CHARTS

industrialtelemetryIoT

Overview
Network bridge between the Ethernet network and the RS485 line for communication and data-logging of Electrex devices. FSTN graphic display. Perennial, battery-powered astronomical clock / calendar and industrial-type non-volatile memory. Remote firmware update. One activated Log 8 logging service for internal inputs and up to 7 Electrex instruments in a sub-network (power/energy and digital inputs). Integrated web server with Upgrade Web and Charts for live measurements and historical graphs. FTP server. 2 digital inputs and 2 digital outputs with separate common. ExpBus high-speed communication port for external I/O modules and environmental sensors. NFC connectivity. Size: 6 DIN modules. Power supply: 85÷265V AC / 100÷374V DC.

Notes
YOCTO NET D6 series devices may be required in other hardware configurations. To build the required code for different versions, refer to the code creation table or the product datasheet.

Product designation
YOCTO NET D6

Code
PFNY6-005D9-A10

Documents available

• Yocto Net D6 product datasheet (PDF)
• Code creation table for Net families (PDF)
• Yocto Net D6 2DI2DO 4COMMON installation instructions (PDF)

Technical specifications

• Function: Network bridge between Ethernet and RS485 for communication and data-logging (web data manager)
• Protocol: Modbus (acquisition from Electrex instruments in sub-network)
• Display: FSTN graphic display
• Clock / Calendar: Perennial, battery-powered astronomical clock / calendar
• Memory: Industrial-type non-volatile memory
• Firmware: Remote firmware update supported
• Logging: One activated Log 8 service (internal inputs and up to 7 Electrex instruments in sub-network: power/energy and digital inputs)
• Web: Integrated web server with Upgrade Web and Charts for live and historical data
• FTP: FTP server available
• Digital I/O: 2 digital inputs (DI) and 2 digital outputs (DO) with separate common
• Expansion: ExpBus high-speed communication port for external I/O modules and environmental sensors
• Connectivity: NFC technology
• Size: 6 DIN modules (DIN rail mounting)
• Power supply: 85÷265V AC / 100÷374V DC
