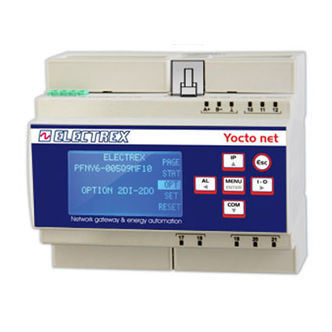

Communication gateway PFNY6-00AD9-110 YOCTO NET WI-FI EDA D6 WEB LOG 8

industrialtelemetryIoT

Description
Industrial network bridge and web data manager for Electrex devices. The PFNY6-00AD9-110 YOCTO NET D6 provides Ethernet and/or Wi‑Fi connectivity to an RS485 Modbus sub-network, enabling communication, remote monitoring and data logging with pre-activated Log 8 service. Designed for DIN-rail mounting and wide-range power supplies for integration into industrial control cabinets.

Key features

• Ethernet and/or Wi‑Fi to RS485 Modbus bridge for Electrex instruments
• Wi‑Fi via external antenna cod. PFC3530 (included); IEEE 802.11b/g/n compatible
• FSTN graphic display for local readings
• Perennial battery-powered astronomical clock/calendar
• Industrial non-volatile memory
• Remote firmware update support
• Pre-activated Log 8 logging service (internal inputs + up to 7 Electrex devices on sub-network)
• Built-in web server with Web Upgrade option for real-time measurement pages
• FTP server support
• 2 digital inputs (DI) and 2 digital outputs (DO) with separate common
• ExpBus high-speed communication and port for external I/O modules and environmental sensors
• NFC technology for configuration/identification
• Compact: 6 DIN modules for DIN-rail mounting
• Wide power supply range: 85÷265V AC / 100÷374V DC

Note
YOCTO NET D6 devices are available in other hardware configurations. Refer to the product datasheet and the Code Creation Table to select the correct version.

Technical specifications

• Function: Ethernet/Wi‑Fi ↔ RS485 Modbus network bridge and web data manager
• Model/series: YOCTO NET D6
• Product code: PFNY6-00AD9-110
• Wi‑Fi: external antenna cod. PFC3530 included; IEEE 802.11b/g/n compatible
• Display: FSTN graphic display
• Clock/Calendar: perennial battery-powered astronomical clock/calendar
• Memory: industrial non-volatile memory; Log 8 logging service pre-activated
• Firmware: remote firmware update capability
• Connectivity: built-in web server (Web Upgrade), FTP server
• Digital I/O: 2 DI, 2 DO with separate common
• Expansion: ExpBus port for external I/O modules and environmental sensors
• Other: NFC technology integrated
• Mechanical size: 6 DIN modules (DIN-rail)
• Power supply: 85÷265V AC / 100÷374V DC
