Monitoring analyzer PFAE6-10102-E00 EXA PRO D6 5A
3-phase electrical networksfor single-phase electrical networksindustrial

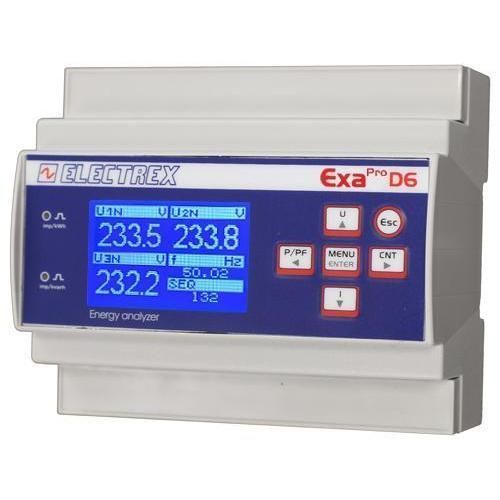

Monitoring analyzer - PFAE6-10102-E00 EXA PRO D6 5A - ELECTREX - 3-phase electrical networks / for single-phase electrical networks / industrial
Monitoring analyzer - PFAE6-10102-E00 EXA PRO D6 5A - ELECTREX - 3-phase electrical networks / for single-phase electrical networks / industrial
Add to favorites
Compare this product
Go to the ELECTREX website for more information

Characteristics

Application domain
monitoring, 3-phase electrical networks, for single-phase electrical networks, industrial
Measured value
power, voltage, energy
Configuration
DIN rail
Protection level
rugged
Other characteristics
RS485, graphic

Description

Overview
Single/Three-Phase energy analyzer designed for installation in industrial and commercial electrical panels; suitable for harsh environments.

Main features
  • Connection via CTs ../5A or ../1A (CTs not included)
  • Accuracy class 0.5S
  • Measures THD and TDD on voltage and current
  • Measures neutral current
  • Measures maximum and minimum voltage
  • Measures maximum current and power
  • Measures active energy per phase
  • Phase sequence detection and configuration
  • Four operating timers
  • Eight configurable alarms, including support for complex logic conditions
  • Graphical LCD display and a calibration LED
  • Communication via Modbus-RTU over RS485
  • Firmware remotely upgradeable and expandable through PUK codes for future upgrades even after installation
  • DIN-rail mounting, 6 modules
  • Power supply: 230–240 VAC
  • Complies with standards EN 50470-1 and EN 50470-3

Characteristics / Technical specifications
  • Product type: Single/Three-Phase energy analyzer
  • Model family: EXA PRO D6
  • Reference on page: PFAE6-10102-E00
  • CT input options: ../5A or ../1A (external CTs required)
  • Accuracy: class 0.5S
  • Measured quantities: THD, TDD (voltage & current), neutral current, Vmax, Vmin, Imax, Pmax, active energy per phase
  • Display: Graphical LCD
  • Indicators: Calibration LED
  • Alarms: 8 configurable (complex logic supported)
  • Timers: 4 operating timers
  • Communication: Modbus-RTU over RS485
  • Firmware: Remote upgradeable and expandable via PUK codes
  • Mounting: DIN-rail, 6 modules width
  • Supply voltage: 230–240 VAC
  • Standards: EN 50470-1, EN 50470-3
