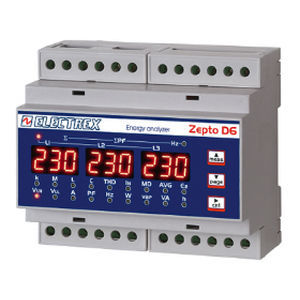

Monitoring analyzer PFA8611-02 ZEPTO D6

voltageharmonicenergy

Product name
PFA8611-02 ZEPTO D6 RS485 230-240V Multimeter / Energy Analyzer

Code
Cod. PFA8611-02

Overview
Over 50 measurement readings including neutral current, THD-I and THD-U, rolling demand and maximum demand, partial and total active energy (Ea) and reactive energy (Er). RMS measurement up to the 31st harmonic. Voltage and current accuracy 0.5%; active energy accuracy Class 1 and reactive energy Class 2 (EN62053-21). Three 3-digit high-visibility LED displays. Suitable for single-phase, 2-phase and balanced or unbalanced 3-phase systems (max. 500 V phase-to-phase). Wiring: 2-, 3- and 4-wire; suitable for LT and HT systems. Current input 1–5 A via CT. RS485 serial port (Modbus). Operating temperature -10 to +50 °C. Power supply 230–240 Vac; other supplies available on request.

Technical specifications

• Over 50 measurement readings (incl. neutral current, THD-I, THD-U)
• Rolling demand and maximum demand measurements
• Partial and total active energy (Ea) measurement
• Reactive energy (Er) measurement
• RMS measurement up to the 31st harmonic
• Voltage and current accuracy: 0.5%
• Active energy accuracy: Class 1 (EN62053-21)
• Reactive energy accuracy: Class 2 (EN62053-21)
• Display: 3 × 3-digit high-visibility LED displays
• Supported systems: single-phase, 2-phase, balanced or unbalanced 3-phase (max. 500 V phase-to-phase)
• Wiring: 2, 3 and 4 wire configurations; suitable for LT and HT systems
• Current input: 1-5 A via CT
• Communications: RS485 serial port (Modbus protocol)
• Operating temperature range: -10 to +50 °C
• Power supply: 230-240 Vac (other supplies available on request)
• DIN size: 6 modules (DIN rail mount)
• Family/product: Zepto
• Options: other hardware configurations, supply voltages and I/O types available on request
