Monitoring analyzer PFA64M1-0A-B FEMTO MID D4 ECT
for electrical networksfor regulatoryindustrial

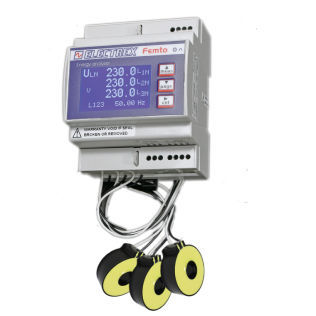

Monitoring analyzer - PFA64M1-0A-B FEMTO MID D4 ECT - ELECTREX - for electrical networks / for regulatory / industrial
Monitoring analyzer - PFA64M1-0A-B FEMTO MID D4 ECT - ELECTREX - for electrical networks / for regulatory / industrial
Add to favorites
Compare this product
Go to the ELECTREX website for more information

Characteristics

Application domain
monitoring, for electrical networks, for regulatory, industrial
Measured value
harmonic, power, voltage, energy
Configuration
DIN rail
Other characteristics
RS485

Description

Product overview
  • Three-phase low-voltage energy counter/analyzer for 3-phase 3- and 4-wire systems, model PFA64M1-0A-B (FEMTO D4 B), designed for MID-compliant installations.


Standards & accuracy
  • Complies with MID annex MI-003 and standards EN 50470-1 and EN 50470-3.
  • Accuracy: EN 62053-21 class 1; EN 50470-3 class B.


Measurements & functions
  • Calibrated for use with three external ECT CTs 100A (cod. PFAE000-01) connected to the instrument.
  • Measurement of THD on voltage and current.
  • Neutral current measurement.
  • Maximum and minimum voltage detection (Vmax/Vmin).
  • Maximum current (Imax) measurement.
  • Maximum power (Pmax) measurement.
  • Active energy measurement for each phase.
  • Phase rotation detection.
  • Four operating time counters.
  • Calibration LED indicator.
  • RS485 serial communication interface.


Mechanical & electrical
  • Installation width: 4 DIN rail modules.
  • Power supply: 85–440 Vac (phase–phase).


Applications
  • Suitable for energy monitoring and metering in three-phase low-voltage networks (3- and 4-wire), industrial and commercial installations requiring MID conformity.
  • Fiscal certificates for metrological use available on request.


Technical specifications
  • Product family / model: Femto D4 B / PFA64M1-0A-B.
  • Measurement type: three-phase energy counter/analyzer for low-voltage systems (3-phase, 3- and 4-wire).
  • Standards: MID MI-003, EN 50470-1, EN 50470-3.
  • Accuracy classes: EN 62053-21 class 1; EN 50470-3 class B.
  • CTs: calibrated with 3 external ECT CTs 100A (cod. PFAE000-01).
  • Measured parameters: active energy per phase, THD (voltage & current), neutral current, Vmax/Vmin, Imax, Pmax.
  • Counters: four operating time counters.
  • Indicators: calibration LED (1).
  • Communications: RS485 serial interface.
  • Mechanical size: 4 DIN rail modules.
  • Supply voltage: 85–440 Vac (phase–phase).
  • Certificates: fiscal/metrological certificates available on request.
