Monitoring analyzer PFAE6M1-0A EXA MID D6

for electrical networkspowervoltage

Overview

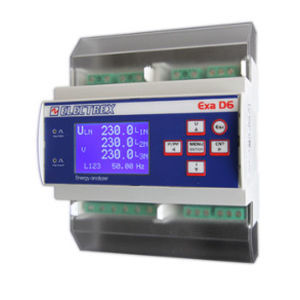

Energy analyzer for low-voltage measurement, compliant with EN 50470-1 and EN 50470-3 and with MID (conformity assessment modules B and F). Accuracy: Class 1 (EN 62053-21) and Class B (EN 50470-3). Suitable for harsh environments. Backlit graphic LCD display. DIN-rail mounting, 6 modules. Power supply 85 ÷ 440 Vac.

Main functions and features

• Measures active energy per phase
• Measures THD on voltage and current
• Measures neutral current
• Records MAX and MIN voltage
• Records MAX current and MAX power
• Average active and reactive power on 1-minute rolling window
• Runtime counter for the monitored load, activatable by internal alarm via Energy Brain software
• RS485 communication interface
• 2 calibration LEDs

Technical specifications

• Product code: Cod. PFAE6M1-0A
• Denomination: EXA MID D6
• Accuracy: Class 1 (EN 62053-21); Class B (EN 50470-3)
• Standards: EN 50470-1, EN 50470-3, MID (modules B and F)
• Power supply: 85 ÷ 440 Vac (phase-phase)
• Display: Backlit graphic LCD
• Interfaces: RS485
• Mounting: DIN rail, 6 modules
• Measured parameters: active energy per phase; THD (voltage and current); neutral current; MAX/MIN voltage; MAX current; MAX power
• Calibration: 2 calibration LEDs
• Environment: suitable for harsh environments

Downloads
Datasheet and installation instructions (PDF) available from the product page.
