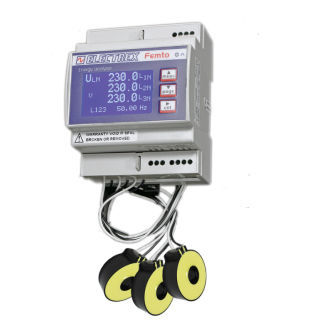

Monitoring analyzer PFA64M1-DA-B FEMTO MID D4 ECT

for electrical networksfor networks3-phase electrical networks

Product overview
Energy meter/analyzer for three-phase low-voltage networks (3- and 4-wire) compliant with MID annex MI-003 and standards EN 50470-1 and EN 50470-3. Calibrated for use with three external ECT 100 A CTs (PFAE000-01). Suitable for industrial and commercial electrical monitoring and billing applications.

Main features

• Accuracy: Class 1 (EN 62053-21); Class B (EN 50470-3)
• Calibrated for 3 external ECT CTs 100 A (cod. PFAE000-01)
• Measurement of voltage, current and THD (voltage and current)
• Neutral current measurement
• Maximum and minimum voltage monitoring
• Maximum current and power measurement
• Active energy measurement per phase
• Four operating time counters
• 1 calibration LED
• RS485 communication interface
• 2 digital inputs and 2 digital outputs with separate common terminals
• Power supply: 85-440 Vac (phase-to-phase)
• Mechanical size: 4 DIN rail modules

Additional information
Datasheet available for FEMTO D4 B and ATTO D4 B (pdf). Fiscal certification for metering (MID) can be requested separately where required.

Technical specifications

• Model family: FEMTO D4
• Product code: PFA64M1-DA-B
• Type: Three-phase energy meter/analyzer, low voltage (3- and 4-wire)
• Standards: MID annex MI-003; EN 50470-1; EN 50470-3; EN 62053-21
• Accuracy class: Class 1 (EN 62053-21); Class B (EN 50470-3)
• Current transformer (CT): calibrated on 3 external ECT CTs 100 A (PFAE000-01)
• Measured parameters: voltage, current, THD (V and I), neutral current, active energy per phase, max/min voltage, max current and power
• Counters: four operating time counters
• Indicators: 1 calibration LED
• Communications: RS485 interface
• Digital I/O: 2 digital inputs, 2 digital outputs (separate common terminals)
• Power supply: 85-440 Vac (phase-to-phase)
• Mechanical size: 4 DIN rail modules
