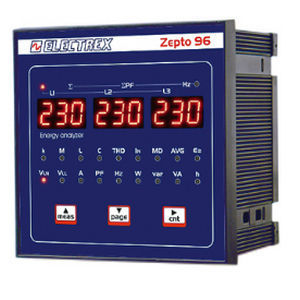

Monitoring analyzer PFA8C11-02 ZEPTO 96

for electrical networksAC energy networkindustrial

Product name
PFA8C11-02 ZEPTO 96 RS485 230-240 Vac Multimeter / Energy Analyzer

Overview
Over 50 electrical measurements including neutral current, THD for current and voltage (THD-I, THD-U), rolling demand and maximum demand, partial and total active energy (Ea) and reactive energy (Er). RMS measurement up to the 31st harmonic. Voltage and current accuracy 0.5%; active energy Class 1 and reactive energy Class 2 (EN 62053-21). 3 × 3-digit high-visibility LED displays. Panel cut-out 96×96 mm. Supports single-phase, 2-phase, balanced or unbalanced 3-phase systems (max. 500 V phase-to-phase); 2-, 3- & 4-wire configurations; LT and HT systems. CT input ../1-5 A. RS485 serial port (Modbus protocol). Operating temperature -10 to +50 °C. Power supply 230-240 Vac (other options on request).

Key features

• Over 50 measurable values including neutral current
• THD measurement for current and voltage (THD-I, THD-U)
• RMS measurement up to the 31st harmonic
• Rolling demand and maximum demand measurements
• Partial and total active energy (Ea) and reactive energy (Er)
• Accuracy: 0.5% on voltage and current; Active energy Class 1; Reactive energy Class 2 (EN 62053-21)
• 3 × 3-digit high-visibility LED displays
• Compatible with single-phase, 2-phase, balanced or unbalanced 3-phase systems (max. 500 V phase-to-phase)
• Supports 2-, 3- & 4-wire, low tension and high tension systems
• Current transformer input: ../1-5 A
• RS485 serial port with Modbus protocol
• Operating temperature range: -10 to +50 °C
• Power supply: 230-240 Vac (other supplies on request)

Documentation available
Leaflet, Datasheet and Installation instructions (PDF formats available from the manufacturer).

Technical specifications

• Product code: Cod. PFA8C11-02
• Model: ZEPTO 96
• Measurements: >50 readings including neutral current, THD-I, THD-U, rolling/maximum demand
• Harmonic measurement: RMS to 31st harmonic
• Voltage/current accuracy: 0.5% on V and I
• Energy accuracy: Active energy Class 1; Reactive energy Class 2 (EN 62053-21)
• Display: 3 × 3-digit high-visibility LED displays
• Panel cut-out: 96×96 mm
• System compatibility: Single-phase, 2-phase, balanced/unbalanced 3-phase (max. 500 V ph-ph); 2/3/4 wire; LT and HT
• CT input: ../1-5 A
• Communications: RS485 (Modbus)
• Operating temperature: -10 °C to +50 °C
• Power supply: 230-240 Vac (other supplies on request)
