Monitoring analyzer PFA74D1-D2-B ATTO RCM D4 ECT
3-phase electrical networksfor single-phase electrical networkspower

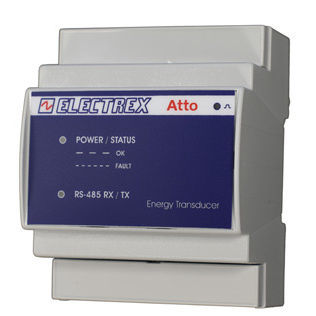

Monitoring analyzer - PFA74D1-D2-B ATTO RCM D4 ECT - ELECTREX - 3-phase electrical networks / for single-phase electrical networks / power
Monitoring analyzer - PFA74D1-D2-B ATTO RCM D4 ECT - ELECTREX - 3-phase electrical networks / for single-phase electrical networks / power
Add to favorites
Compare this product
Go to the ELECTREX website for more information

Characteristics

Application domain
monitoring, 3-phase electrical networks, for single-phase electrical networks
Measured value
harmonic, power, voltage, energy
Configuration
DIN rail
Other characteristics
RS485

Description

Product overview
  • Single-/three-phase energy transducer / analyzer with integrated residual current monitoring (for up to 3 single-phase loads).
  • Requires external Electrex ECT type current transformers (not included), e.g. PFAE000-01 or PFAE000-02.
  • Programmable residual current threshold from 0.03 A to 5 A.


Key measurements and functions
  • Measurement of THD (total harmonic distortion) for voltage and current.
  • Neutral current measurement.
  • Maximum and minimum voltage detection.
  • Maximum power and maximum current detection.
  • Active energy measurement per phase.
  • Phase sequence available in Modbus register.
  • Four operating time counters for the monitored load.
  • One calibration/status LED.


Communications, I/O and firmware
  • RS485 interface with Modbus protocol.
  • 2 digital inputs and 2 digital outputs with separate commons (pre-alarm and alarm functions).
  • Firmware remotely upgradeable.


Mechanical and compliance
  • Size: 4 DIN rail modules.
  • Power supply: 230-240 Vac.
  • Standards: EN 50470-1 and EN 50470-3.
  • Not suitable as a protective or life-saving device.


Technical specifications
  • Product code: PFA74D1-D2-B.
  • Product type: Single-/three-phase energy transducer/analyzer with residual current monitoring (up to 3 single-phase loads).
  • Required external CTs: Electrex ECT type (not included), e.g. PFAE000-01, PFAE000-02.
  • Programmable residual current threshold: 0.03 A ÷ 5 A.
  • Measurements: THD (voltage and current), neutral current, Vmax, Vmin, max power, max current, active energy per phase.
  • Phase sequence: available on Modbus register.
  • Counters: Four operating time counters for the monitored load.
  • Indicator: 1 calibration/status LED.
  • Interfaces: RS485 (Modbus), 2 digital inputs, 2 digital outputs with separate commons.
  • Firmware: remotely upgradeable.
  • Size: 4 DIN modules.
  • Power supply: 230-240 Vac.
  • Standards: EN 50470-1, EN 50470-3.
