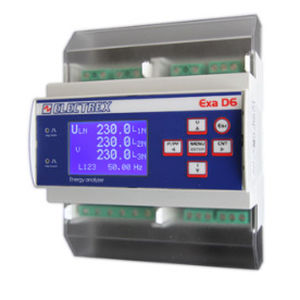

Monitoring analyzer PFAE6M1-QA EXA MID D6

for electrical networksindustrialpower

Product
PFAE6M1-QA EXA MID D6 RS485 85-440V 2DI 2DO ENERGY ANALYZER

Description
Energy analyzer for low-voltage measurements compliant with EN 50470-1 and EN 50470-3 and certified for MID (conformity assessment modules B and F). Designed for harsh environments, it features a backlit graphic LCD and provides comprehensive electrical measurements and monitoring functions for industrial applications.

Measured parameters and functions

• Active energy per phase
• Maximum (MAX) and minimum (MIN) voltage
• Maximum current and maximum power
• Neutral current measurement
• Total harmonic distortion (THD) on voltage and current

I/O and communication

• RS485 communication interface
• 2 digital inputs (2DI)
• 2 digital outputs (2DO)

Mechanical and installation

• DIN rail mounting, occupies 6 modules

Additional features

• 2 calibration LEDs
• Suitable for harsh environment applications

Technical specifications

• Model / Denomination: EXA MID D6
• Product code: PFAE6M1-QA
• Standards: EN 50470-1, EN 50470-3; MID conformity assessment modules B and F
• Accuracy: Class 1 according to EN 62053-21; Class B according to EN 50470-3
• Display: Backlit graphic LCD
• Measurements: Active energy per phase; THD (voltage and current); neutral current; MAX/MIN voltage; MAX current and power
• Inputs / Outputs: 2 digital inputs, 2 digital outputs
• Communications: RS485 interface
• Calibration indicators: 2 calibration LEDs
• Mounting: DIN rail, 6 modules width
• Power supply: 85 ÷ 440 Vac
• Environment: Suitable for harsh environments
