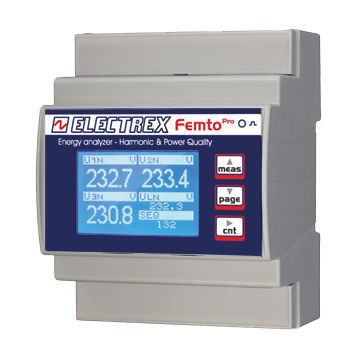

Electrical network analyzer PFA64-10102-E00 FEMTO PRO D4 5A CLAMP

AC energy networkpowervoltage

Overview
Single-/three-phase energy analyzer (up to 3 single-phase lines) with accuracy class 0.5S. Connection via CTs ../5A or ../1A (CTs not included). DIN-rail 4-module mounting and screw terminal installation. Power supply 230–240 VAC.

Main features

• Measures THD and TDD on voltage and current
• Measures neutral current
• Measures maximum and minimum voltage
• Measures maximum current and power
• Measures active energy per phase
• Phase sequence detection and configuration
• Four operating timers
• Eight configurable alarms with support for complex logic conditions
• Graphical LCD display
• Calibration LED
• Communication via Modbus-RTU over RS485
• Firmware remotely upgradeable and expandable via PUK codes
• DIN-rail mounting (4 modules)
• Screw terminal connections

Available documentation (on product page)

• Datasheet (PDF)
• Installation instructions (PDF)

Technical specifications

• Model family: FEMTO PRO
• Model: FEMTO PRO D4
• Product code / ordering: PFA64-10102-E00
• Phases supported: Single-phase and Three-phase (up to 3 single-phase lines)
• Accuracy class: 0.5S
• Current input: via CTs ../5A or ../1A (CTs not included); 5A clamp option indicated
• Measurements: THD, TDD on voltage and current; neutral current; max/min voltage; max current; power; active energy per phase
• Display: Graphical LCD
• Indicators: Calibration LED
• Alarms: 8 configurable alarms with complex logic support
• Timers: 4 operating timers
• Communication: Modbus-RTU over RS485
• Firmware: Remotely upgradeable; expandable via PUK codes
• Mounting: DIN-rail, 4 modules
• Terminals: Screw terminal installation
• Supply voltage: 230–240 VAC
• Standards: EN 50470-1, EN 50470-3
