Monitoring analyzer PRA74-E0102-E00 ATTO PRO D4 ECT PLUG RS485 230-240V
for electrical networksAC energy network3-phase electrical networks

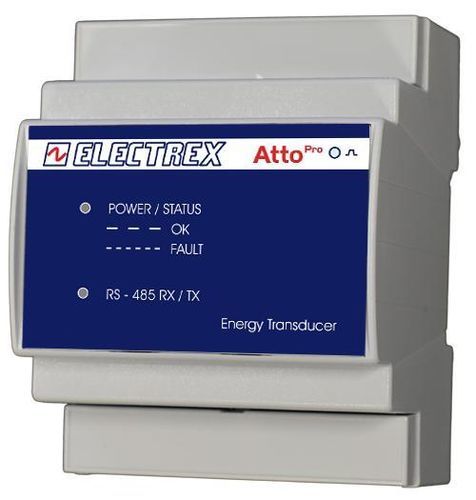

Monitoring analyzer - PRA74-E0102-E00 ATTO PRO D4 ECT PLUG RS485 230-240V - ELECTREX - for electrical networks / AC energy network / 3-phase electrical networks
Monitoring analyzer - PRA74-E0102-E00 ATTO PRO D4 ECT PLUG RS485 230-240V - ELECTREX - for electrical networks / AC energy network / 3-phase electrical networks
Add to favorites
Compare this product
Go to the ELECTREX website for more information

Characteristics

Application domain
monitoring, for electrical networks, 3-phase electrical networks, AC energy network, for single-phase electrical networks, industrial
Measured value
power, voltage, energy
Configuration
DIN rail
Other characteristics
real-time, digital, RS485, multichannel

Description

Product overview
  • Single/three-phase energy analyzer (up to 3 single-phase lines).
  • Accuracy class 0.5S.
  • Designed for use with external ECT current transformers (not included), e.g. 100A model code PFAE000-09.
  • Measures THD and TDD on voltage and current, neutral current, maximum and minimum voltage, maximum current and power, and active energy per phase.
  • Phase sequence detection and configurable phase settings.
  • Four operating timers and eight configurable alarms with support for complex logic conditions.
  • Calibration LED for energy, status LED and RS485 communication LED.
  • Communication: Modbus-RTU over RS485.
  • Firmware remotely upgradeable and expandable via PUK codes for future features after installation.
  • DIN-rail mounting, 4 modules; installation via screw terminals.
  • Power supply: 230–240 VAC.
  • Complies with standards EN 50470-1 and EN 50470-3.


Technical specifications
  • Model: ATTO PRO D4
  • Product code: PRA74-E0102-E00
  • Type: Single/three-phase energy analyzer (up to 3 single-phase lines)
  • Accuracy class: 0.5S
  • Current transformers: external ECT (not included) — example 100A model code PFAE000-09
  • Measured parameters: THD (voltage/current), TDD, neutral current, max/min voltage, max current and power, active energy per phase
  • Communication: Modbus-RTU over RS485
  • Firmware: remotely upgradeable; expandable via PUK codes
  • Alarms & timers: 8 configurable alarms, 4 operating timers; supports complex logic
  • LED indicators: energy calibration LED, status LED, RS485 communication LED
  • Mounting: DIN-rail, 4 modules
  • Terminals: screw terminals
  • Power supply: 230–240 VAC
  • Standards: EN 50470-1, EN 50470-3
