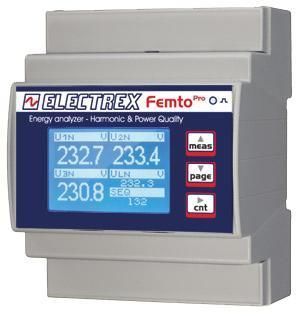

AC energy network analyzer PRA64-F0102-E00 FEMTO PRO D4 F PLUG

3-phase electrical networksfor single-phase electrical networkspower

Overview
Single/three-phase energy analyzer (up to 3 single-phase lines) providing overall Class 1 accuracy when paired with FEMTO PRO F and FCTS flexible split-core CTs. Designed for DIN-rail installation with compact 4-module width and RJ45/removable terminal connections. Power supply 230–240 VAC. Compliant with EN 50470-1 and EN 50470-3.

Measured parameters and functions

• THD and TDD measurement on voltage and current
• Neutral current monitoring
• Maximum and minimum voltage detection
• Maximum current and maximum power measurement
• Active energy measurement per phase
• Phase sequence detection and configurable phase settings

Alarms, timers and logic

• Four independent operating timers
• Eight configurable alarms
• Support for complex logic conditions to generate alarms

User interface and indicators

• Graphical LCD display for measurements and menus
• Calibration LED indicator

Communication and firmware

• Modbus-RTU communication over RS485
• Firmware remotely upgradeable
• Expandable via PUK codes for future feature upgrades post-installation

Mechanical and installation

• DIN-rail mounting, 4 modules width
• Installation using RJ45 connectors and removable terminal blocks

Power and compliance

• Power supply: 230–240 VAC
• Standards: EN 50470-1 and EN 50470-3

Product code
PRA64-F0102-E00

Available documentation

• Femto Pro Product Sheet - Atto Pro (PDF)
• Femto Pro D4 RS485 PLUG SERIES Installation Instructions (PDF)

Technical specifications

• Supported configurations: Single-phase and three-phase (up to 3 single-phase lines)
• Overall accuracy: Class 1 (with FEMTO PRO F + FCTS flexible CTs)
• CT connection: FCTS series flexible split-core CTs (CTs not included)
• Configurable CT full scale: up to 4000 A
• Power measurements: maximum current, maximum power, active energy per phase
• Power quality measurements: THD and TDD on voltage and current
• Neutral monitoring: neutral current measurement
• Voltage monitoring: maximum and minimum voltage
• Phase functions: phase sequence detection and configurable phase settings
• Timers: 4 operating timers
• Alarms: 8 configurable alarms with complex logic support
• Display: graphical LCD
• Indicator: calibration LED
• Communication protocol: Modbus-RTU over RS485
• Firmware: remotely upgradeable and PUK-expandable
• Mounting: DIN-rail (4 modules)
• Connections: RJ45 connectors and removable terminal blocks
• Power supply: 230–240 VAC
• Standards: EN 50470-1, EN 50470-3
