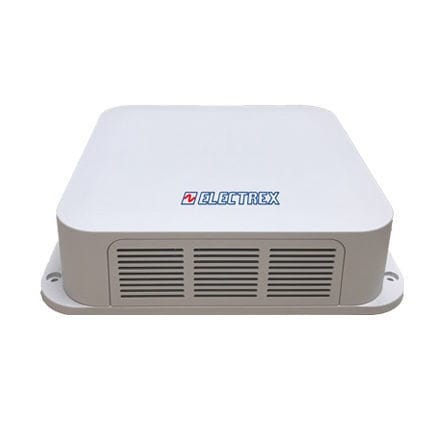

Indoor air quality monitor PFATJ3J-04W AirQ Pro

CO2VOCrelative humidity

Overview
Integrated system for monitoring and managing Indoor Air Quality, with local data-logging and publication of Dashboards/Graphs for rapid identification of the healthiness of environments. AirQ Pro can be configured as Master or Slave to create networks of multiple AirQs.

Connectivity

• Wired: Ethernet, RS485 serial
• Wireless: Wi-Fi

Measured parameters

• VOC (Volatile Organic Compounds)
• CO2 equivalent (CO2e)
• Particulate matter: PM1, PM2.5, PM10 (PM4 available on request)
• Temperature (T)
• Relative Humidity (RH)
• Atmospheric Pressure (Pa)
• Other parameters on request (eg. Ozone O3, Ultraviolet radiation UV-A, UV-B, UV-C)

Power and enclosure

• Power supply: 12 Vdc via 220 cm cable (external power supply included)
• Case color: White
• Case size: 230 x 60 x 200 mm

Additional information
The system supports local data logging and dashboard/graph publication. Configurable Master/Slave topology enables networked deployments of multiple AirQ Pro units.

Caractéristiques / spécifications techniques

• Product name: AirQ Pro
• Model code shown on page: PFATJ3J-04W
• VOC sensing: included
• CO2 equivalent (CO2e): included
• Particulate matter sensing: PM1, PM2.5, PM10 (PM4 on request)
• Temperature measurement: included
• Relative Humidity measurement: included
• Atmospheric Pressure: Pa
• Optional sensors on request: O3, UV-A, UV-B, UV-C
• Connectivity: Ethernet, RS485, Wi-Fi
• Power: 12 Vdc via 220 cm cable (external PSU included)
• Enclosure dimensions: 230 x 60 x 200 mm
