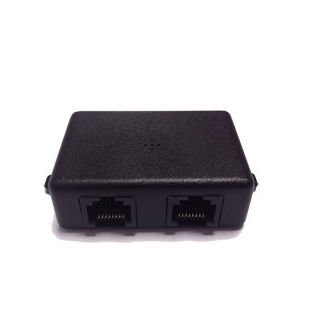

Relative humidity and temperature sensor MILLI PRO BUS RJ BLACK BOX T H

RS-48510-30 VDCcompact

Product description
Ambient temperature and relative humidity sensor designed exclusively for Electrex PRO series instruments equipped with SIO Bus. Model: PFAMRHZ-00EB. Compact black enclosure suitable for BUS connections via RJ45.

Measurement range and accuracy

• Measurement range: -20°C to +80°C (wider range available on request).
• Typical accuracy: ±0.1°C (temperature) and ±1.0% RH (relative humidity).

Addressing

• Addressable nodes: 1, 2, 3, 4.

Connectivity

• Equipped with 2 female RJ45 ports for BUS connection.

Enclosure

• Black enclosure.
• Dimensions: 38 × 73 × 20 mm.

Documentation available
Product datasheet: Milli Pro I/O and Milli Pro Sensor (PDF available).

Technical specifications

• Type: Ambient temperature and relative humidity sensor for Electrex PRO series with SIO Bus compatibility.
• Temperature range: -20°C to +80°C (extendable on request).
• Temperature typical accuracy: ±0.1°C.
• Relative humidity typical accuracy: ±1.0% RH.
• Addressing: 4 possible addresses (1, 2, 3, 4).
• Bus ports: 2 female RJ45 ports.
• Enclosure color: Black.
• Dimensions: 38 × 73 × 20 mm.
• Product code: PFAMRHZ-00EB.
