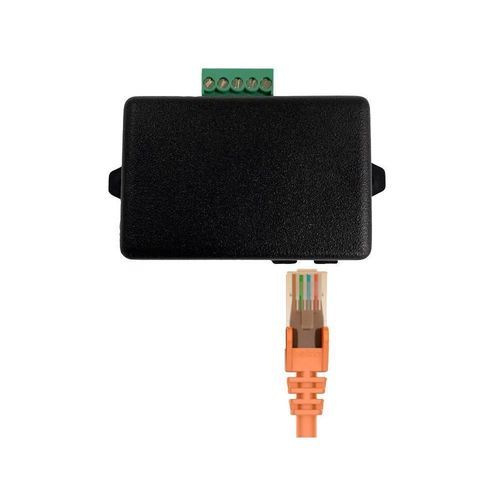

Digital I/O module PFAMR0Z-N0EB MILLI PRO I/O RJ BOX 4DI 4COMMON

RJ454 digital inputsbox

Description
Device equipped with 4 opto-isolated digital inputs for status and/or pulse counting, with separate commons. Equipped with 2 female RJ45 ports for quick connection to the SIO BUS (maximum allowed length: 20 m). Usable exclusively with Electrex instruments from the PRO family equipped with SIO Bus. The input circuits require an external power supply (e.g., 12 Vdc or 24 Vdc). Powered at 3.3 Vdc by devices equipped with SIO Bus. Black enclosure, dimensions: 38 × 73 × 20 mm.

Features

• 4 opto-isolated digital inputs (status and/or pulse counting) with separate commons
• 2 female RJ45 ports for SIO BUS connection (maximum allowed length: 20 m)
• External input power supply required (e.g., 12 Vdc or 24 Vdc)
• Powered at 3.3 Vdc by SIO Bus devices
• Black enclosure

Technical specifications

• Product code: PFAMR0Z-N0EB
• Product type: MILLI PRO I/O RJ BOX
• Compatibility: Electrex PRO family equipped with SIO Bus
• Number of digital inputs: 4 (opto-isolated) with separate commons
• SIO BUS ports: 2 × female RJ45
• Maximum SIO BUS cable length: 20 m
• Input circuit supply: external (example: 12 Vdc or 24 Vdc)
• Device supply from SIO Bus: 3.3 Vdc
• Enclosure color: black
• Dimensions: 38 × 73 × 20 mm

Documentation
Product datasheet available in PDF format.
