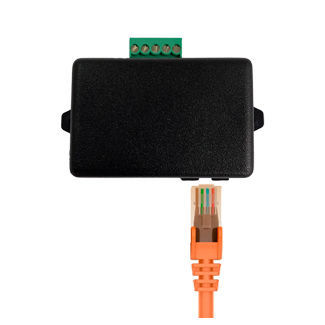

Digital I/O module PFAMR0Z-Q0EB MILLI PRO

RJ45Modbus2-O

Product overview
PFAMR0Z-Q0EB MILLI PRO I/O RJ BOX. Device with 2 digital inputs and 2 digital outputs with separate commons, designed for remote status monitoring and pulse counting in industrial installations.

Inputs

• 2 opto-isolated digital inputs with anti‑bounce (debounce) filtering
• Suitable for pulse counting and remote status indication

Outputs

• 2 opto-isolated transistor outputs
• Rated 27 Vdc, 27 mA (DIN 43864)
• Programmable as internal alarm outputs or as remotely controlled output units

Alarms and communication

• 8 configurable alarms able to drive digital outputs
• Alarms can also set status signals in Modbus registers

Power and enclosure

• Power supply: 3.3 Vdc provided via SIO Bus from host devices
• Black enclosure
• Dimensions: 38 × 73 × 20 mm

Technical specifications

• Code: PFAMR0Z-Q0EB
• Model: MILLI PRO I/O RJ BOX
• Digital inputs: 2, opto-isolated, debounce filtering
• Digital outputs: 2, opto-isolated transistor outputs, 27 Vdc, 27 mA (DIN 43864), programmable
• Commons: 4 separate commons
• Alarms: 8 configurable alarms, can drive outputs and/or update Modbus registers
• Power: 3.3 Vdc (provided via SIO Bus)
• Enclosure: black; Dimensions 38 × 73 × 20 mm
