Digital I/O module PFAMR0Z-70EB MILLI PRO

RJ452-Obox

Product overview

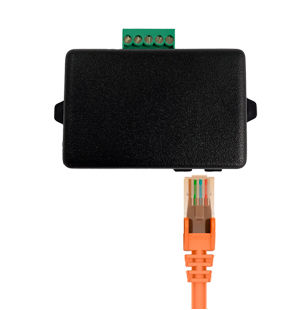

Relay output module MILLI PRO I/O RJ Box PFAMR0Z-70EB. Device equipped with 2 relay outputs with changeover (SPDT) contacts, capable of switching loads up to 250 Vac and 2 A resistive. Equipped with 2 female RJ45 ports for quick connection to the SIO BUS (maximum permitted cable length: 20 m). Usable exclusively with Electrex PRO series instruments equipped with SIO Bus. Power supply: 3.3 Vdc provided by SIO Bus devices. Black enclosure, dimensions: 38 × 73 × 20 mm.

Key features

• Product code: PFAMR0Z-70EB
• 2 relay outputs with changeover (SPDT) contacts
• Load capacity: up to 250 Vac, 2 A resistive
• 2 × RJ45 female ports for SIO Bus (max 20 m)
• Powered at 3.3 Vdc from SIO Bus
• Compact black enclosure: 38 × 73 × 20 mm

Documentation
Product datasheet "Milli Pro I/O and Milli Pro Sensor" (PDF) available for additional technical information and wiring examples.

Technical specifications

• Relay type: SPDT (changeover)
• Number of outputs: 2 relay outputs
• Maximum switching: 250 Vac, 2 A resistive
• Communication ports: 2 × RJ45 female for SIO Bus
• SIO Bus max cable length: 20 m
• Compatibility: Electrex PRO series instruments with SIO Bus
• Power supply: 3.3 Vdc (provided by SIO Bus devices)
• Enclosure color: Black
• Dimensions: 38 × 73 × 20 mm
