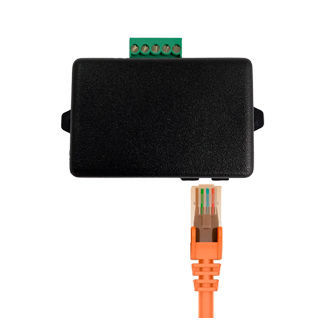

Fieldbus node PFAMR0Z-N0EB MILLI PRO

Fieldbus node - PFAMR0Z-N0EB MILLI PRO - ELECTREX
Fieldbus node - PFAMR0Z-N0EB MILLI PRO - ELECTREX
Add to favorites
Compare this product
Go to the ELECTREX website for more information

Description

Description
  • Device equipped with 4 opto-isolated digital inputs for status and/or pulse counting, with separate commons.
  • Equipped with 2 female RJ45 ports for quick connection to the SIO Bus (maximum allowed length: 20 m).
  • Usable exclusively with Electrex instruments from the PRO family equipped with SIO Bus.
  • The input circuits require an external power supply (e.g., 12 Vdc or 24 Vdc).
  • Powered at 3.3 Vdc by devices equipped with SIO Bus.
  • Black enclosure, dimensions: 38 × 73 × 20 mm.


Main functions
  • 4 opto-isolated digital inputs for status signal detection and/or pulse counting
  • Separate commons for each input group to avoid interference
  • 2 RJ45 female ports for straightforward SIO Bus chaining
  • Maximum SIO Bus cable length: 20 m
  • Input circuits require external supply (examples: 12 Vdc or 24 Vdc)
  • Device can receive 3.3 Vdc supply from SIO Bus-equipped instruments
  • Compact black enclosure for easy integration (38 × 73 × 20 mm)


Specifications / technical data
  • Product name: MILLI PRO I/O RJ BOX
  • Product code: PFAMR0Z-N0EB
  • Inputs: 4 opto-isolated digital inputs (status / pulse counting)
  • Commons: separated
  • Interface: 2 female RJ45 ports for SIO Bus connection
  • Maximum SIO Bus length: 20 m
  • Input power: external supply required (e.g., 12 Vdc or 24 Vdc)
  • Supply from SIO Bus: 3.3 Vdc (provided by SIO Bus-equipped devices)
  • Enclosure color: black
  • Dimensions: 38 × 73 × 20 mm
  • Compatibility: exclusively for Electrex PRO family devices with SIO Bus
