Analog I/O module PFAMR0Z-R0EB MILLI PRO

Modbus4 analog inputsanalog signal converter

Product description

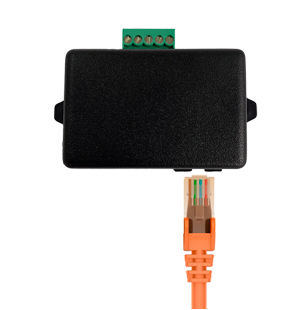

Compact I/O RJ box for integration of analog signals with Electrex PRO instruments via SIO Bus. Equipped with four analog inputs with separate commons and eight configurable alarms that generate status signals on Modbus registers. Power supplied by SIO Bus (3.3 Vdc). Black enclosure, dimensions 38 × 73 × 20 mm.

Features

• 4 analog inputs with separate commons
• SIO Bus interface for analog input integration
• 8 configurable alarms to generate status signals on Modbus registers
• Compatible exclusively with Electrex PRO series instruments equipped with SIO Bus
• Power supply: 3.3 Vdc (provided by SIO Bus devices)
• Black enclosure

Technical specifications

• Analog inputs: 4 (with separate commons)
• Interface: SIO Bus
• Alarms: 8 configurable (status signals on Modbus registers)
• Compatibility: Electrex PRO series (SIO Bus)
• Power supply: 3.3 Vdc (from SIO Bus)
• Enclosure color: black
• Dimensions: 38 × 73 × 20 mm

Documentation
Product datasheet: Milli Pro I/O and Milli Pro Sensor (PDF). Product code: PFAMR0Z-R0EB.
