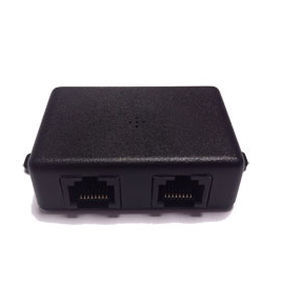

Relative humidity and temperature sensor PFAMRSZ-00EB MILLI PRO

EthernetLANmulti-sensor

Product overview
Multifunction environmental sensor measuring temperature, relative humidity, ambient luminosity and ambient pressure. Designed for exclusive use with Electrex PRO series instruments equipped with SIO Bus.

Measurements

• Temperature range: -20°C to +80°C (extended range available on request).
• Temperature typical accuracy: ±0.1°C.
• Relative humidity typical accuracy: ±1.0%.
• Luminosity (ambient light): selectable configuration for indoor (0–4,000 lux) or outdoor (0–65,000 lux) measurement.
• Ambient pressure measurement range: 800–1,100 mbar.

Connectivity

• Equipped with 2 female RJ45 ports for SIO Bus connection.

Mechanical

• Black enclosure.
• Dimensions: 40 × 60 × 20 mm.

Technical characteristics / specifications

• Product code: PFAMRSZ-00EB.
• Model: MILLI PRO SENSOR.
• Compatibility: only with Electrex PRO series instruments equipped with SIO Bus.
• Temperature range: -20°C to +80°C (extended range on request).
• Temperature typical accuracy: ±0.1°C.
• Relative humidity typical accuracy: ±1.0%.
• Ambient light: configurable for indoor 0–4,000 lux or outdoor 0–65,000 lux.
• Ambient pressure range: 800–1,100 mbar.
• Connectivity: 2 female RJ45 BUS ports.
• Enclosure: black, 40 × 60 × 20 mm.
