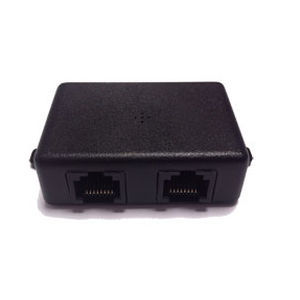

Relative humidity and temperature sensor PFATREQ-00B

RS-485Ethernetcompact

Product overview
Ambient temperature and relative humidity sensor for Net series with built-in SI BUS module, Libra and RS485 Node SI compatibility. Measurement range for temperature: -20°C .. +80°C (extended range available on request); typical temperature accuracy ±0.2°C. Typical relative humidity accuracy ±1.5%. Addressable: 1 to 2. Equipped with 2 RJ45 female ports for BUS connection. Black external enclosure, dimensions: 38 x 73 x 20 mm.

Features

• Ambient temperature measurement
• Relative humidity measurement
• Built-in SI BUS module
• Compatible with Net series, Libra and RS485 Node SI
• 2 RJ45 female ports for BUS connection
• Compact black external enclosure

Technical specifications

• Temperature measurement range: -20°C .. +80°C (extended range on request)
• Temperature typical accuracy: ±0.2°C
• Relative humidity typical accuracy: ±1.5%
• Addressable: 1 to 2
• Connectivity: 2 RJ45 female ports for BUS connection
• Built-in modules: SI BUS; compatible with Libra and RS485 Node SI
• Enclosure color: black
• Dimensions: 38 x 73 x 20 mm

Compatibility and integration
Designed for direct integration into Electrex Net series installations and compatible with Libra and RS485 Node SI systems. BUS wiring via two RJ45 ports simplifies connection and system layout.

Notes

• Extended temperature ranges available on request
• Address configuration performed via BUS
