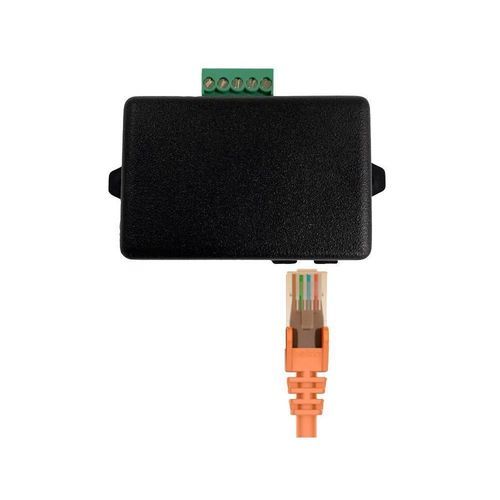

Digital I/O module PFAMR0Z-P0EB MILLI PRO I/O RJ BOX 4DO 4COMMON

RJ454-Obox

Product description
Compact MILLI PRO I/O RJ box (PFAMR0Z-P0EB) providing four opto-isolated transistor digital outputs with separate commons. Designed for industrial control applications requiring remote output expansion via SIO Bus.

Connectivity
The unit features two female RJ45 ports for fast connection to the SIO BUS. Maximum recommended bus cable length: 20 m.

Compatibility
Intended for exclusive use with Electrex instruments of the PRO series equipped with SIO Bus; integrates as an I/O expansion module for these systems.

Power
Output circuits require an external power supply (for example 12 Vdc or 24 Vdc). The device logic is powered at 3.3 Vdc by host devices via the SIO Bus.

Mechanical
Robust black enclosure with compact footprint. Dimensions: 38 × 73 × 20 mm.

Technical specifications

• Product code: PFAMR0Z-P0EB
• Designation: MILLI PRO I/O RJ BOX 4DO 4COMMON
• Type: I/O module for MILLI PRO system
• Digital outputs: 4 opto-isolated transistor digital outputs
• Output voltage rating: 27 Vdc
• Nominal current per output: 27 mA
• Standard: compliant with DIN 43864
• Commons: separate for outputs
• Bus connections: 2 female RJ45 ports for SIO BUS connection
• SIO BUS maximum cable length: 20 m
• Compatibility: usable exclusively with Electrex PRO series devices equipped with SIO Bus
• Output operation: outputs can operate as remotely controlled output units
• Output power: requires external power supply (e.g., 12 Vdc or 24 Vdc)
• Bus supply: powered at 3.3 Vdc by SIO Bus devices
• Color: black
• Dimensions (L×W×H): 38 × 73 × 20 mm
